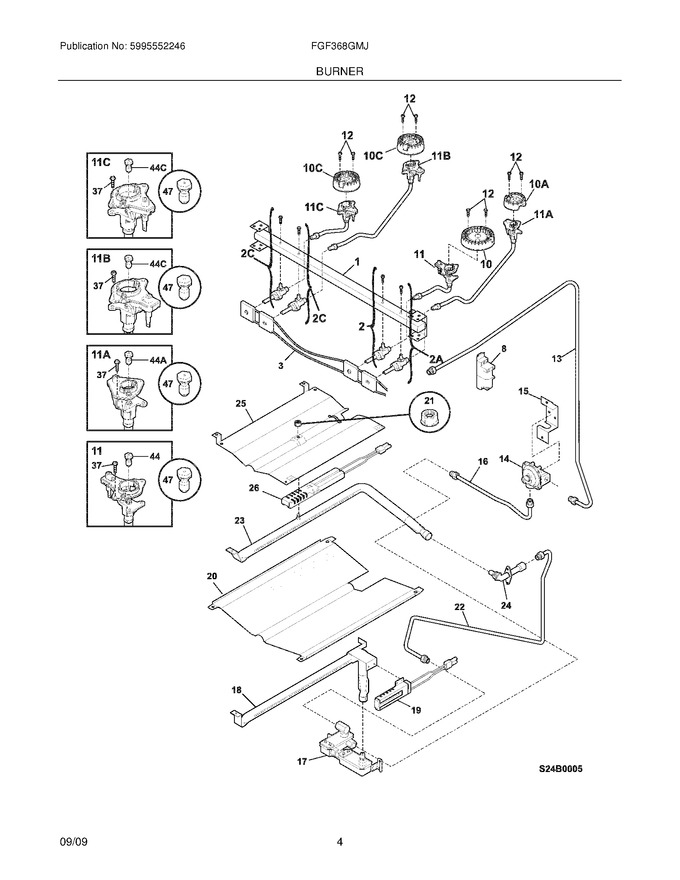

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303935307 | Valve,14k Top Burner ,w/mtg Screw |
|
$ 90.72 | |||||
| 10 | 316438600 | Burner,sealed ,14k |
|
Immediately | $ 79.80 | ||||
| 12 | 316540900 | Screw,burner ,head Mtg ,(8) |
|
Immediately | $ 15.17 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 20 | 5304519024 | Baffle,oven Burner (Replaces: 316401401) |
|
Immediately | $ 80.39 | ||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 25 | 316401301 | Baffle,broil Burner |
|
$ 173.57 | |||||
| 37 | 316240600 | Screw,assy Mtg ,(8) ,ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 316527511 | Orifice,top Burner ,14k |
|
$ 19.85 | |||||
| 47 | GRLP3 | Lp Conversion Kit,w/instructions |
|
$ 57.11 | |||||
| 11A | 316536610 | Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube |
|
Immediately | $ 92.38 | ||||
| 11B | 316536600 | Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube |
|
$ 124.27 | |||||
| 11C | 316536602 | Ignitor/orifice Assy.,top Burner ,left Front,9.5k ,w/holder ,tube |
|
$ 132.62 | |||||
| 44A | 316527504 | Orifice,top Burner ,5k |
|
$ 22.68 | |||||
| 44C | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| F1 | 316417900 | Manifold Pipe |
|
$ 146.71 | |||||
| F10A | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10C | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 52.45 | ||||
| F11 | 316536614 | Ignitor/orifice Assy.,top Burner ,right Front,14k ,w/holder ,tube |
|
$ 112.27 | |||||
| F13 | 316489100 | Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings |
|
$ 77.97 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316416700) |
|
Immediately | $ 105.42 | ||||
| F16 | 5304507348 | Tube-valve To Rgltr,3/8 (Replaces: 316431000) |
|
Immediately | $ 47.03 | ||||
| F17 | 316404901 | Valve,safety |
|
$ 365.72 | |||||
| F18 | 316404400 | Burner,oven |
|
$ 109.10 | |||||
| F19 | 5304506545 | Ignitor,oven Burner (Replaces: 316489404) |
|
Immediately | $ 94.21 | ||||
| F22 | 5304507768 | Tube-valve To Mixer (Replaces: 316537100) |
|
$ 50.06 | |||||
| F23 | 316404300 | Burner,broiler |
|
$ 235.98 | |||||
| F24 | 5304516894 | Elbow,mixer (Replaces: 316409700) |
|
$ 87.21 | |||||
| F26 | 316489403 | Ignitor,burner |
|
Immediately | $ 113.15 | ||||
| F2A | 5303935308 | Valve,5k Top Burner ,w/mtg Screw |
|
$ 70.88 | |||||
| F2C | 5303935305 | Valve,9.5k Burner ,w/mtg Screw |
|
Immediately | $ 77.26 | ||||
| F3 | 316219019 | Wiring Harness,w/igntr Switch |
|
$ 79.86 | |||||
| F8 | 5304505695 | Module,spark (Replaces: 316135702) |
|
Immediately | $ 68.16 | ||||
| FNI | 316526901 | Harness,ignitor |
|
$ 110.78 | |||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt |
|
$ 7.79 | |||||
| NI | 316443200 | Bracket-support |
|
- | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316417518 | Instructions,lp Conversion |
|
- | |||||
| NI | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316498100 | Shield,wire ,safety Valve |
|
$ 15.17 | |||||
| NI | 316401500 | Cover,broil Ignitor |
|
$ 12.89 |
