SELECT A DIAGRAM

02 - Door, Lit/optional


03 - Cabinet


04 - Liner

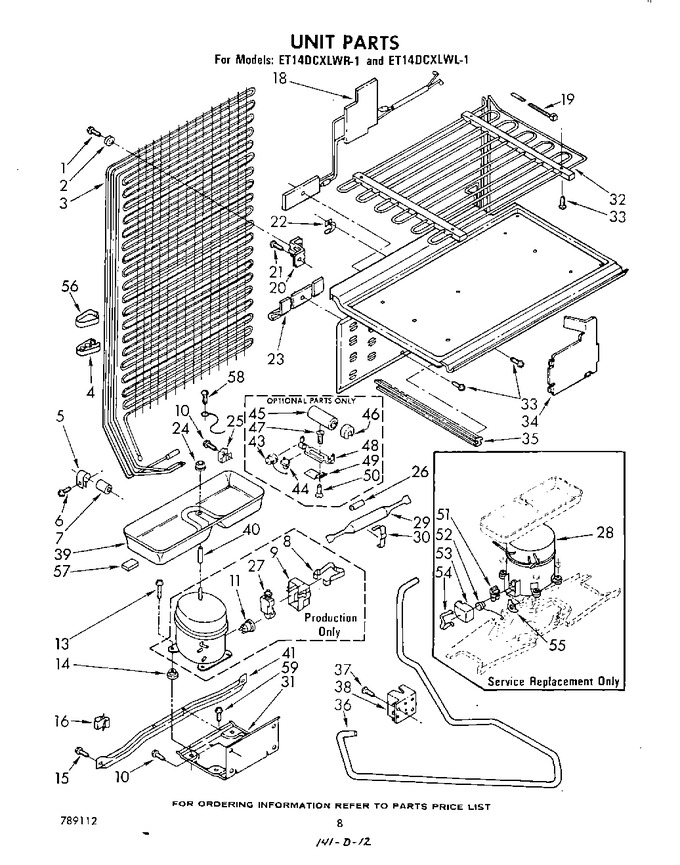

05 - Unit


06 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 3/4 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	938387		Condenser & Precooler Assembly		Appelez-nous	-
4	506884		Tube Clip (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	938368		Dampener		Appelez-nous	-
8	938384		Strap		Appelez-nous	-
9	938383		Terminal Cover		Appelez-nous	-
10	WP489069		Screw,8x1/2 (2)   (Replaces: 488480)			Immediately	$ 7.07
11	941605		Overload		Appelez-nous	-
13	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 6.68
14	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	937000		Support Grommet (2)		Appelez-nous	-
18	937013		Defrost Heater		Appelez-nous	-
19	851095		Strap (2)		Appelez-nous	-
20	937066		Bracket, Condenser (2)		Appelez-nous	-
21	WP489069		Screw, 8 X 7/8   (Replaces: 488480)			Immediately	$ 7.07
22	939079		Clip, Capillary Tube		Appelez-nous	-
23	937019		Clamp, Capillary Tube		Appelez-nous	-
24	WP487939		Hex Nut, 1/4-20   (Replaces: 489087)				$ 6.95
25	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	938385		Relay		Appelez-nous	-
28	482055		Compressor (also Order 482801 Installation Kit & 876765 Tube Kit)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	942860		Unit, Plate		Appelez-nous	-
32	937035		Evaporator Assembly		Appelez-nous	-
33	486214		Screw 8-15 X 1/2		Appelez-nous	-
34	937059		Tube Cover		Appelez-nous	-
35	940115		Gasket, Evaporator Lower R.s.		Appelez-nous	-
35	940116		Gasket, Evaporator Lower L.s.		Appelez-nous	-
36	945558		Heat Exchanger		Appelez-nous	-
37	W11624204		Screw, 8-32 X 3/8   (Replaces: 486194)				$ 12.62
38	937068		Box, Junction		Appelez-nous	-
39	935781		Tray, Evaporator		Appelez-nous	-
40	941517		Spacer		Appelez-nous	-
41	945448		Unit, Rail		Appelez-nous	-
43	549478		Overload (used In Start Kit 482278)		Appelez-nous	-
44	482279		Relay (used In Start Kit 482278)		Appelez-nous	-
45	WP482156		Capacitor (used In Start Kit 482278)   (Replaces: 482156)				$ 97.14
46	482157		Cap, Capacitor (used In Start Kit 482278)		Appelez-nous	-
47	487631		Screw (2) (used In Start Kit 482278)		Appelez-nous	-
48	482158		Bracket, Capacitor (used In Start Kit 482278)		Appelez-nous	-
49	549939		Bracket, Support (used In Start Kit 482278)		Appelez-nous	-
50	488487		Screw (used In Start Kit 482278)		Appelez-nous	-
51	989646		Relay		Appelez-nous	-
52	549478		Overload		Appelez-nous	-
53	549505		Terminal Cover		Appelez-nous	-
54	549342		Strap		Appelez-nous	-
55	549086		Spring, Overload		Appelez-nous	-
56	506885		Tube, Clip		Appelez-nous	-
57	301774		Pad, Sound		Appelez-nous	-
58	303776		Screw, 8-32 X 5/16   (Replaces: 488879)		Appelez-nous	-
59	482278		Start Kit		Appelez-nous	-
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 117.64
59	876764		Valve, Access(3/16``)			Immediately	$ 82.22
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
59	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
59	978026		Valve, Access (5/16``)			Immediately	$ 115.28
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48

    View Diagram in Separate Window       Print Part List
