SELECT A DIAGRAM
01 - Body/oven
02 - Door/drawer (d3120srxlt)
03 - Gas Controls

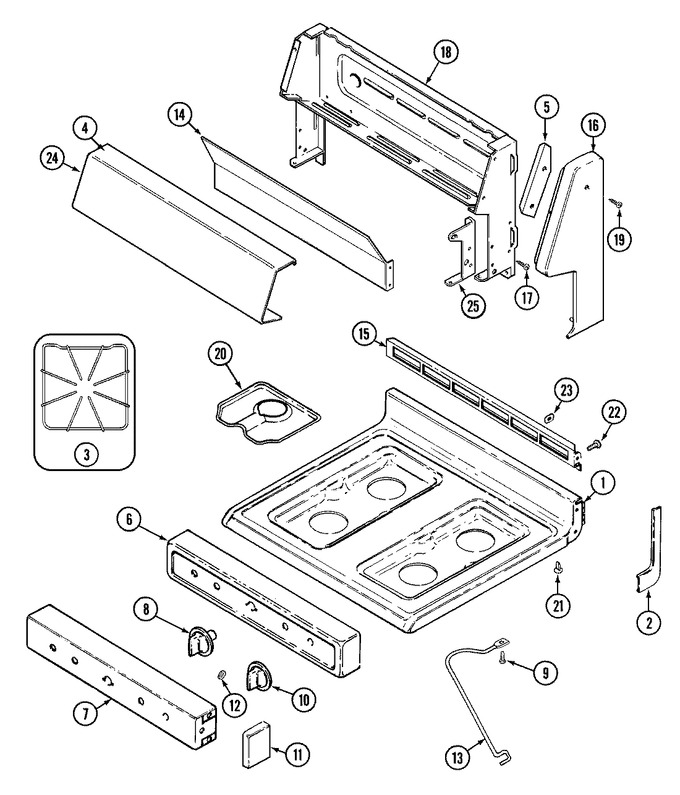

04 - Top Assembly/control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W081-81 | Top, Main (wht) | 01 |
|
- | ||||
| 2 | 7746P030-60 | End Cap (rt-blk) | 01 |
|
$ 26.16 | ||||
| 2 | 7746P031-60 | End Cap (lt-blk) | 01 |
|
$ 26.25 | ||||
| 3 | 2003W026-00 | Grate (blk) | 01 |
|
- | ||||
| 4 | 7719P071-60 | Nameplate, Dixie | 01 |
|
- | ||||
| 4 | 4851S088-59 | Panel Assy | 01 |
|
- | ||||
| 4 | 3801F296-51 | Bracket, Backguard | 01 |
|
- | ||||
| 5 | 3807F450-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 5 | 3807F449-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 7 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 7 | 7109P015-60 | Washer | 01 |
|
- | ||||
| 7 | 2616F102-09 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 8 | WP74002419 | Knob, Thermostat (blk) (Replaces: 7731P079-60) | 01 |
|
$ 18.54 | ||||
| 9 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 10 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P062-60) | 01 |
|
$ 25.06 | ||||
| 11 | 7713P018-60 | End Cap, Panel (blk) | 01 |
|
- | ||||
| 12 | 7712P092-60 | Panel, Manifold | 01 |
|
- | ||||
| 13 | 7809P014-60 | Support, Prop | 01 |
|
- | ||||
| 14 | 3604F188-09 | Shield, Flue | 01 |
|
- | ||||
| 15 | 3608F042-09 | Trim, Vent (blk) | 01 |
|
- | ||||
| 16 | 7726P051-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 16 | 7726P052-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 17 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 18 | 4001F088-51 | Housing, Backguard | 01 |
|
- | ||||
| 19 | 7101P032-60 | Screw | 01 |
|
- | ||||
| 20 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 01 |
|
$ 95.86 | ||||
| 21 | 8016P013-60 | Glide | 01 |
|
- | ||||
| 22 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 01 |
|
$ 11.92 | ||||
| 23 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 01 |
|
$ 7.68 | ||||
| 24 | 7703P628-60 | Trim, Bkgd | 01 |
|
- |
