SELECT A DIAGRAM

01 - Control Panel


02 - Door/drawer


03 - Door/drawer (ser. Pre. 20)


04 - Gas Controls


05 - Oven/body


06 - Top Assembly


07 - Wiring Information

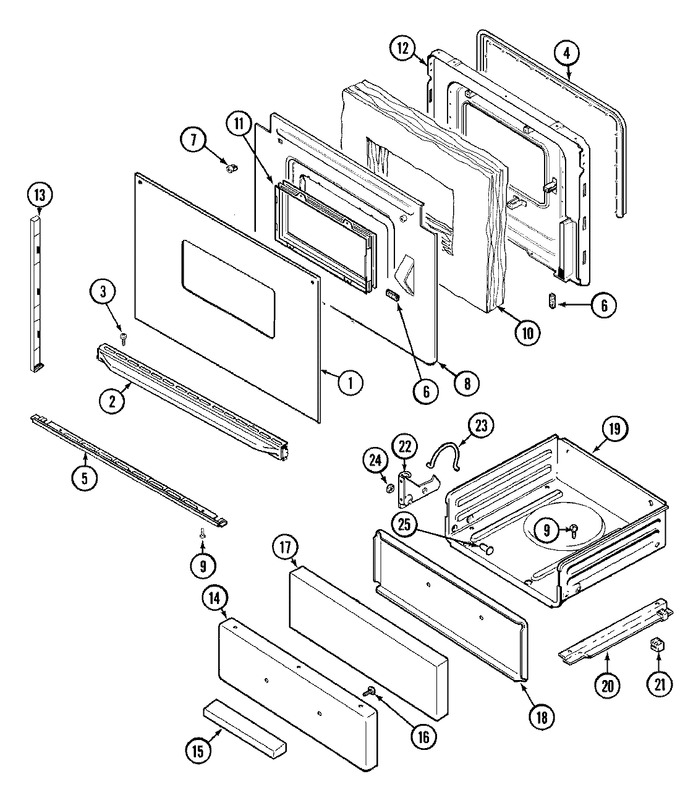

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P321-60		Glass, Door (blk)	01	Appelez-nous	-
2	7701P096-60		Handle, Door (blk)	01	Appelez-nous	-
2	7101P291-60		Screw	01	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
4	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)	01		Immediately	$ 56.83
5	7744P105-60		Trim, Bottom (blk)----na	01	Appelez-nous	-
6	8010P085-60		Spacer, Rubber	01	Appelez-nous	-
7	8010P075-60		Spacer	01	Appelez-nous	-
8	3601F232-45		Baffle, Door	01	Appelez-nous	-
9	W11233072		Screw   (Replaces: 7101P290-60)	01		Immediately	$ 12.62
10	4804F033-60		Insulation, Door	01	Appelez-nous	-
11	7907P016-60		Window Asy.	01	Appelez-nous	-
12	2402W203-19		Lining, Door	01	Appelez-nous	-
13	7744P055-60		End Cap, Oven Door (blk)	01	Appelez-nous	-
14	2403F028-71		Panel, Drawer (wht)	01	Appelez-nous	-
15	WP2411F013-70		Handle, Drawer (blk)   (Replaces: 2411F003-70)	01			$ 186.01
16	74002481		Screw, Handle   (Replaces: 7101P283-60)	01			$ 5.82
17	4804F025-60		Insulation	01	Appelez-nous	-
18	2404F035-19		Lining, Broiler Drawer	01	Appelez-nous	-
19	3407F012-19		Drawer, Broiler	01	Appelez-nous	-
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	01		Immediately	$ 12.62
20	3404F023-51		Track, Drawer (rt)	01	Appelez-nous	-
20	3404F022-51		Track, Drawer (lt)	01	Appelez-nous	-
21	8016P013-60		Glide	01	Appelez-nous	-
21	8016P011-60		Glide, Drawer	01	Appelez-nous	-
22	3418F080-51		Hinge, Drawer (rt)	01	Appelez-nous	-
22	3418F079-51		Hinge, Drawer (lt)	01	Appelez-nous	-
23	7803P065-60		Spring, Hinge (rt)	01	Appelez-nous	-
23	7803P064-60		Spring, Hinge (lt)	01	Appelez-nous	-
24	7103P022-60		Nut, Grip	01	Appelez-nous	-
25	7113P012-60		Pin, Broiler Hinge	01	Appelez-nous	-
