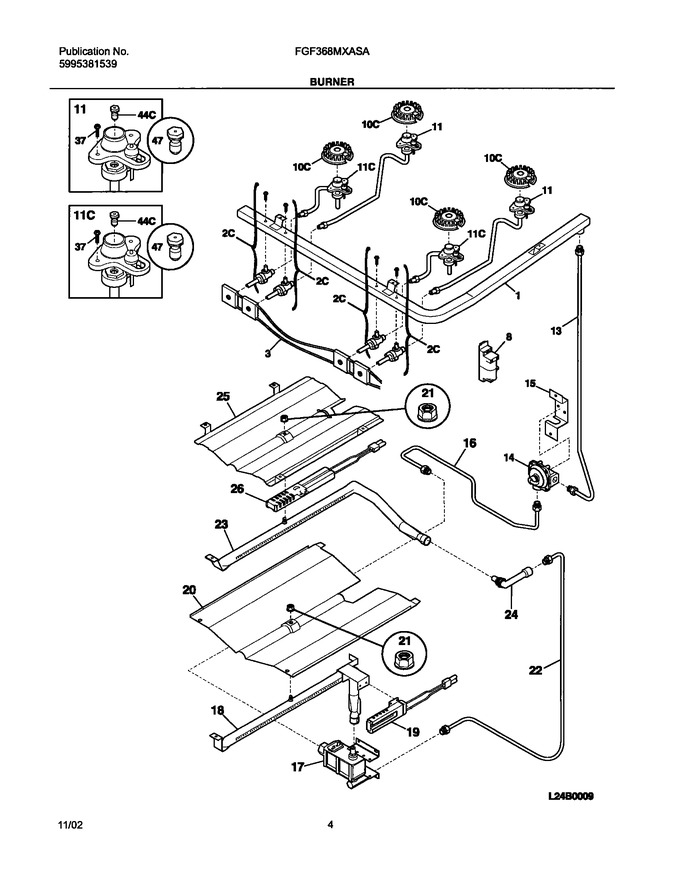

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 20 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 25 | 5303210379 | Baffle-broiler |
|
$ 175.88 | |||||
| 37 | 316240600 | Screw,assy Mtg ,ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 47 | GRLP3 | Lp Conversion Kit,w/instructions (Replaces: GRLP1) |
|
$ 57.11 | |||||
| 44C | 316237902 | Orifice,top Burner ,9.5k |
|
$ 65.22 | |||||
| F1 | 316204000 | Pipe,manifold |
|
- | |||||
| F10C | 316212400 | Burner,sealed ,9.5k |
|
Immediately | $ 32.62 | ||||
| F11 | 316237704 | Ignitor/orifice Assy.,top Burner ,rear ,9.5k,w/holder ,tube (Replaces: 316237701) |
|
$ 132.71 | |||||
| F11C | 316237805 | Ignitor/orifice Assy.,top Burner ,front (Replaces: 316237800) |
|
$ 132.71 | |||||
| F13 | 316207000 | Tube,3/8 `aluminum ,rgltr To Manf ,with Fittings |
|
$ 96.55 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| F16 | 316065003 | Tube,valve To Regul. `3/8 |
|
$ 126.42 | |||||
| F17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| F18 | 3131290 | Burner-oven |
|
- | |||||
| F19 | 5303935066 | Ignitor,oven Kit ,w/nut & Instr |
|
Immediately | $ 59.58 | ||||
| F22 | 316065002 | Tube-valve To Mixer |
|
$ 80.90 | |||||
| F23 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| F24 | 316070400 | Elbow`mixer |
|
- | |||||
| F26 | 5303935068 | Ignitor,broiler (Replaces: 316119302) |
|
$ 166.55 | |||||
| F2C | 5303935213 | Valve,9.5k Top Burner ,w/ Mtg Screw |
|
$ 79.22 | |||||
| F3 | 316219004 | Wiring Harness,w/igntr Switch (Replaces: 316219000) |
|
Immediately | $ 174.86 | ||||
| F8 | 5304505695 | Module,spark (Replaces: 316135701) |
|
Immediately | $ 68.16 | ||||
| NI | 316113400 | Spacer,mixer Elbow |
|
- | |||||
| NI | 08068018 | Shield,wire ,safety Valve |
|
- | |||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt |
|
$ 7.79 | |||||
| NI | 316134300 | Screw,10-24 ,valve Mounting |
|
- | |||||
| NI | 316248105 | Instructions,lp Kit |
|
- | |||||
| NI | 316253700 | Wiring Harness,ignitor Module |
|
$ 139.28 |
