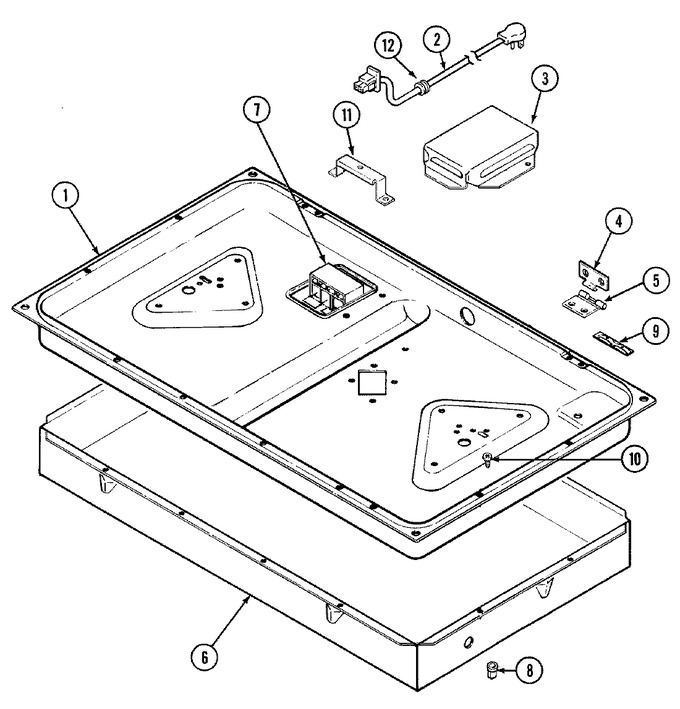

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Gas Controls
03 - Top Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4011F232-19 | Box, Burner | 10 |
|
- | ||||
| 2 | 7402P047-60 | Cord, Power | 10 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7118P004-60) | 10 |
|
$ 4.29 | ||||
| 3 | 4005F108-51 | Cover, Transformer | 10 |
|
- | ||||
| 4 | 7106P001-60 | Hinge, Top | 10 |
|
- | ||||
| 4 | 7101P114-60 | Screw | 10 |
|
- | ||||
| 5 | 7106P005-60 | Hinge, Top | 10 |
|
- | ||||
| 5 | 7101P073-60 | Screw | 10 |
|
- | ||||
| 6 | 8008P012-60 | Grommet, Nylon | 10 |
|
- | ||||
| 6 | 4001F096-51 | Housing, Unit | 10 |
|
- | ||||
| 7 | 12001596 | Module, Spark (Replaces: 7431P027-60) | 10 |
|
Immediately | $ 85.93 | |||
| 8 | 7103P016-60 | Nut, Snap | 10 |
|
- | ||||
| 9 | 7103P028-60 | Nut, Twin Speed | 10 |
|
- | ||||
| 10 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 11 | WP4159193 | Screw (Replaces: 7118P004-60) | 10 |
|
$ 4.29 | ||||
| 11 | 3807F198-34 | Support, Griddle | 10 |
|
- | ||||
| 12 | 8007P003-60 | Bushing, Snap | 10 |
|
- | ||||
| NI | 3801F342-80 | Bracket, Cooktop Mtg. | 10 |
|
- | ||||
| NI | WP4159193 | Screw (Replaces: 7118P004-60) | 10 |
|
$ 4.29 |
