02 - Backguard
03 - Burner
04 - Body

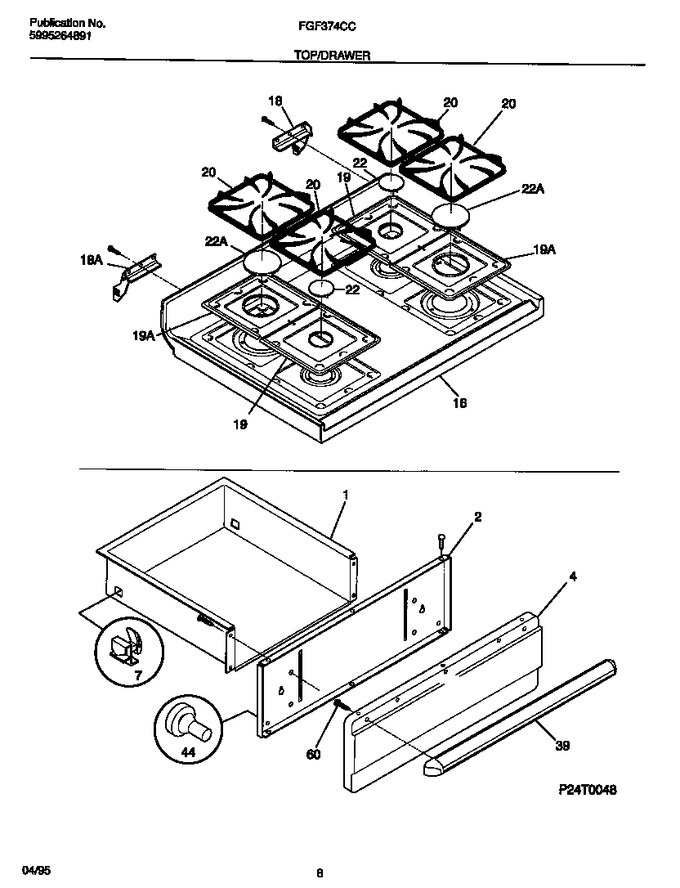

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated) |
|
- | |||||
| 4 | 316056205 | Panel-drawer-white |
|
- | |||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 16 | 5303307709 | Main Top, White |
|
- | |||||
| 18 | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | 316011417 | Pan-burner, Gray, Large |
|
$ 102.20 | |||||
| 19 | 316011413 | Pan-burner, Gray, Small |
|
$ 113.87 | |||||
| 20 | 316085301 | Grate, Gray, (4) |
|
- | |||||
| 22 | 316011006 | Cap-burner, Gray, (2) |
|
- | |||||
| 22 | 316011013 | Cap-burner, Gray, Large, (2) |
|
- | |||||
| 39 | 316026101 | Handle-drawer, White |
|
- | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 60 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *23568 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| *23569 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 16A | 5303271891 | Gusset-top Mtg, Rh (not Illustrated) |
|
- | |||||
| 16B | 5303271892 | Gusset-top Mtg, Lh (not Illustrated) |
|
- |
