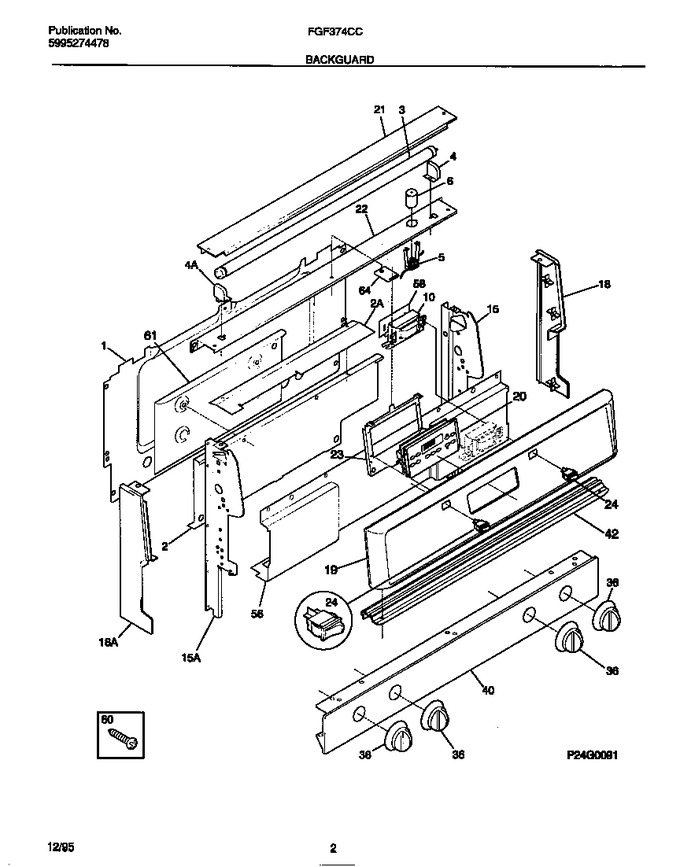

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
2	316053801		Shield-backguard, Inner Top		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
15	316049107		Support, Backguard, Lh		Appelez-nous	-
15	316049106		Support, Backguard, Rh		Appelez-nous	-
18	316026905		End Cap, White, Lh				$ 107.15
18	316026904		End Cap, White, Rh				$ 127.68
19	316024518		Panel-control, White				$ 257.99
20	316027412		Clock/timer, Eoc		Appelez-nous	-
21	316024902		Trim-canopy/shield, White		Appelez-nous	-
22	316059903		Support-receptacle		Appelez-nous	-
23	316060003		Bracket, Clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
36	316049305		Knob-top Valve, White, (4)		Appelez-nous	-
40	316062361		Panel-manifold		Appelez-nous	-
42	316055300		Trim, Vent		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
60	5303290188		Screw, 6 Ov Sdr, 8-18 X 1/2		Appelez-nous	-
61	316055001		Shield, Bkgd Flue		Appelez-nous	-
64	316062400		Retainer, Plate, 64		Appelez-nous	-
*56360	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*56361	316001420		Harness, Wiring, Backguard		Appelez-nous	-
60A	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
60B	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
