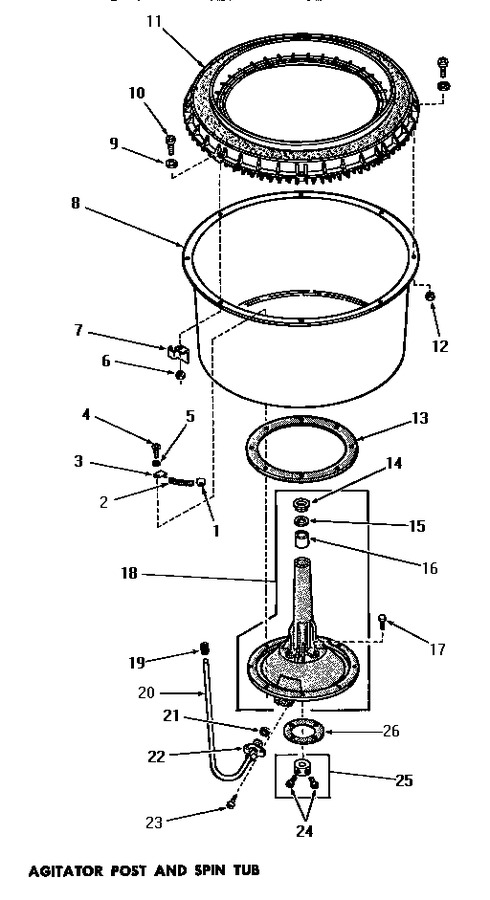

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22446		Clip		Appelez-nous	-
2	22144		Spring		Appelez-nous	-
3	22447		Clip		Appelez-nous	-
4	20260		Screw,5/16-18 X 3/4 Rd		Appelez-nous	-
5	20121		Gasket		Appelez-nous	-
6	26678		Nut,self-locking		Appelez-nous	-
7	22025		Bracket		Appelez-nous	-
8	22382		Tub,spin		Appelez-nous	-
9	25100		Washer,17/64idx1/2odx.				$ 199.99
10	25251		Phillips Head Screw		Appelez-nous	-
11	24931		Balance Ring		Appelez-nous	-
12	25250		Nut,1/4-20 Hex Nyllock		Appelez-nous	-
13	20122		Gasket		Appelez-nous	-
14	23685		Bearing		Appelez-nous	-
15	23684		Seal		Appelez-nous	-
16	23686		Bearing		Appelez-nous	-
17	20261		Screw,cap		Appelez-nous	-
18	23993		Assy,center Column		Appelez-nous	-
19	22351		Sleeve		Appelez-nous	-
20	22359		Tube,sediment		Appelez-nous	-
21	20110		Gasket		Appelez-nous	-
22	26046		Bracket,sediment Tube		Appelez-nous	-
23	20852		Screw,10-24 X 1/2 Hex		Appelez-nous	-
24	23481		Setscrew		Appelez-nous	-
25	20377		No Longer Available				$ 18.87
26	20120		Gasket		Appelez-nous	-
