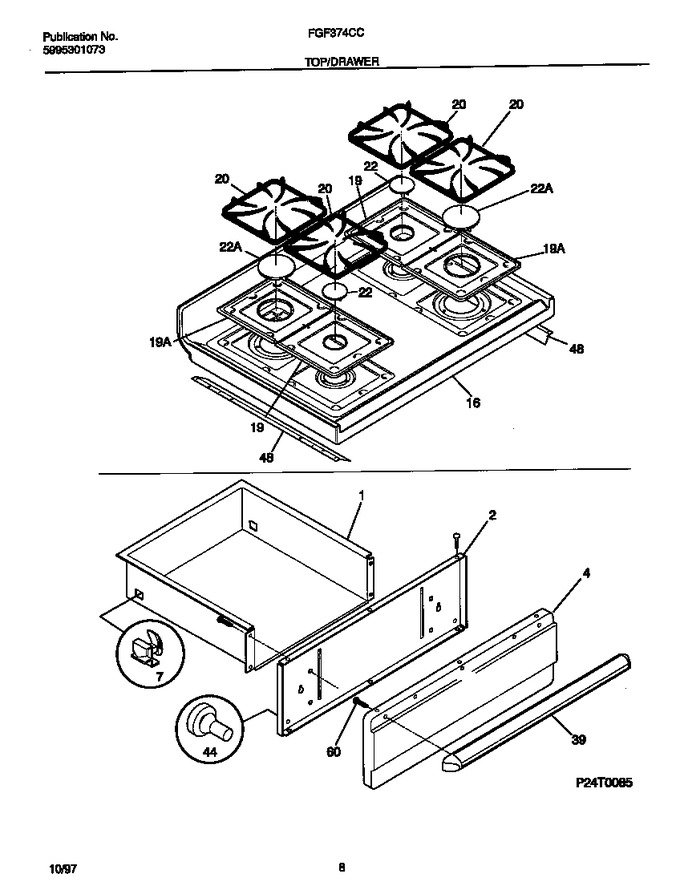

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307709		Main Top, White		Appelez-nous	-
19	316011417		Pan-burner, Gray, Large, (2)				$ 102.20
19	316011413		Pan-burner, Gray, Small, (2)				$ 113.87
20	316085304		Grate, (4)		Appelez-nous	-
22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
22	316011009		Cap-burner, Gray, Large, (1)		Appelez-nous	-
39	316026103		Handle-drawer, White		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
*85807	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*85808	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*85809	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*85810	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*85811	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*85812	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
