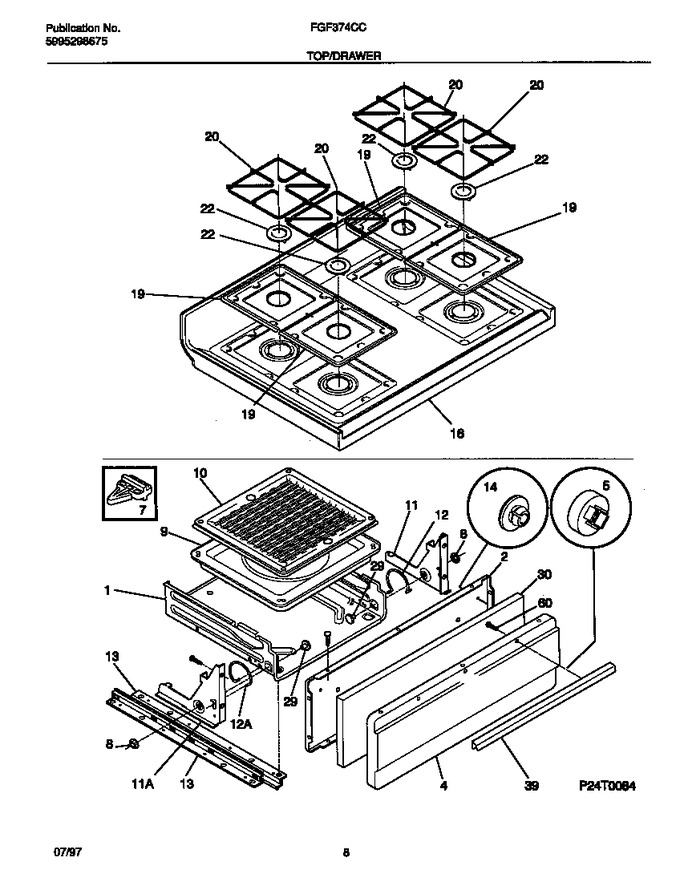

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307710		Main Top, Almond		Appelez-nous	-
19	316011414		Pan-burner, Almond, Small, (2)		Appelez-nous	-
19	316011418		Pan-burner, Almond, Large, (2)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316011004		Cap-burner, Almond, Small, (2)		Appelez-nous	-
22	316011010		Cap-burner, Almond, Large, (2)		Appelez-nous	-
39	316026104		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
60	316089500		Screw, 10-16 X .486, Safety Valve, (4)				$ 13.46
*33449	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*33450	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*33451	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*33452	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*33453	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*33454	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
