Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 24125 Body,valve Appelez-nous -
2 24134 Diaphragm Appelez-nous -
3 24132 Armature Appelez-nous -
4 24131 Spring Appelez-nous -
5 24129 Sleeve,short Appelez-nous -
6 24126 Solenoid Appelez-nous -
7 24128 Sleeve,long Appelez-nous -
8 25817C Screw Appelez-nous -
9 Y00000000 See Note Mixing Valve Assembly Appelez-nous -
10 Y24127 Mounting Bracket Appelez-nous -
11 24130 Guide,armature Appelez-nous -
12 Y24135 Plug,flow Regulator Appelez-nous -
13 23224G Diffuser Appelez-nous -
14 23224C Regulator,flow Appelez-nous -
14 21187C Regulator,flow Appelez-nous -
15 24122 Inlet Screen Special Order $ 8.42

16 20241 Inlet Hose, 4 Feet Appelez-nous -
17 20290 Washer, 19/32 Idx1.031 Appelez-nous -
18 Y24124 Valve Body Appelez-nous -
18 24123 Valve Body Appelez-nous -
19 25817K Diaphragm Appelez-nous -
20 25817H Armature Appelez-nous -
21 25817F Armature Guide Appelez-nous -
22 25817D Sleeve Adapter Appelez-nous -
23 24596A Solenoid Appelez-nous -
24 25817M Solenoid Plug Appelez-nous -
25 25817G Spring Appelez-nous -
26 25817E Sleeve,guide Xreplace Appelez-nous -
27 25817B Mounting Bracket Appelez-nous -
28 Y00000000 See Note Mixing Valve Assembly Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

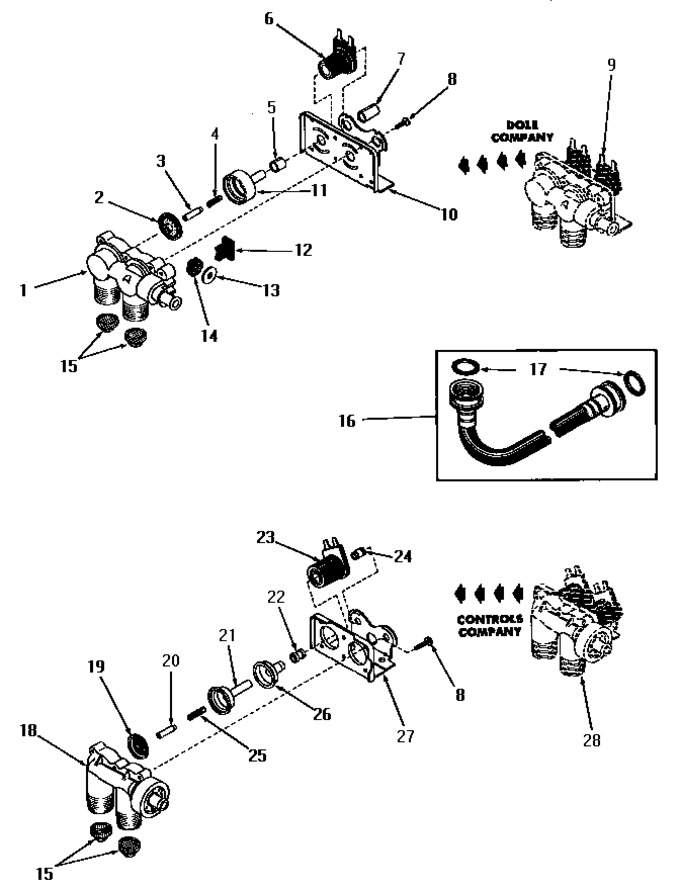

Diagram for DA3201
