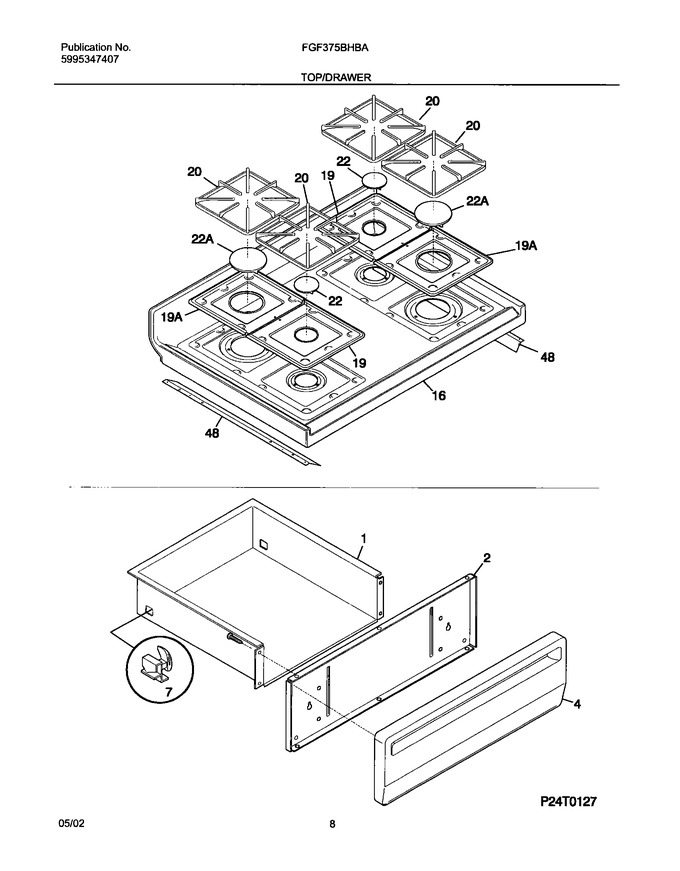

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,liner ,galv Steel ,front Panel		Appelez-nous	-
4	316084407		Panel-drawer Front,black		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307708		Main Top, Black		Appelez-nous	-
22	316122100		Cap-burner,small ,black ,(4)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield,deflector ,main Top Panel ,(2)		Appelez-nous	-
22A	316098505		Cap-burner,black ,large				$ 56.28
F19	316011415		Pan-burner, Black, Small, (2)				$ 53.60
F19A	316011419		Pan-burner,large ,black				$ 102.90
F20	316085201		Grate,black ,(4)		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
