SELECT A DIAGRAM

01 - 24596 & 24597 Mixing Valve Assemblies


02 - 25178 Pump Assy


03 - 25832 & 25833 Mixing Valve Assemblies


04 - Accessories


05 - Agitator Post & Spin Tub


06 - Agitator, Shaft & Fabric Softener Disp


07 - Bleach Dispenser


08 - Boot, Chassis & Drain Tub


09 - Cabinet Top & Loading Door


10 - Control Panel, Control Hood & Controls


11 - Counterbalance Weight, Brkt & Mtg Plate


12 - Door Safety Switch


13 - Drain


14 - Main Bearing Assy


15 - Mixing Valves


16 - Mixing Valves


17 - Motor & Fluid Drive

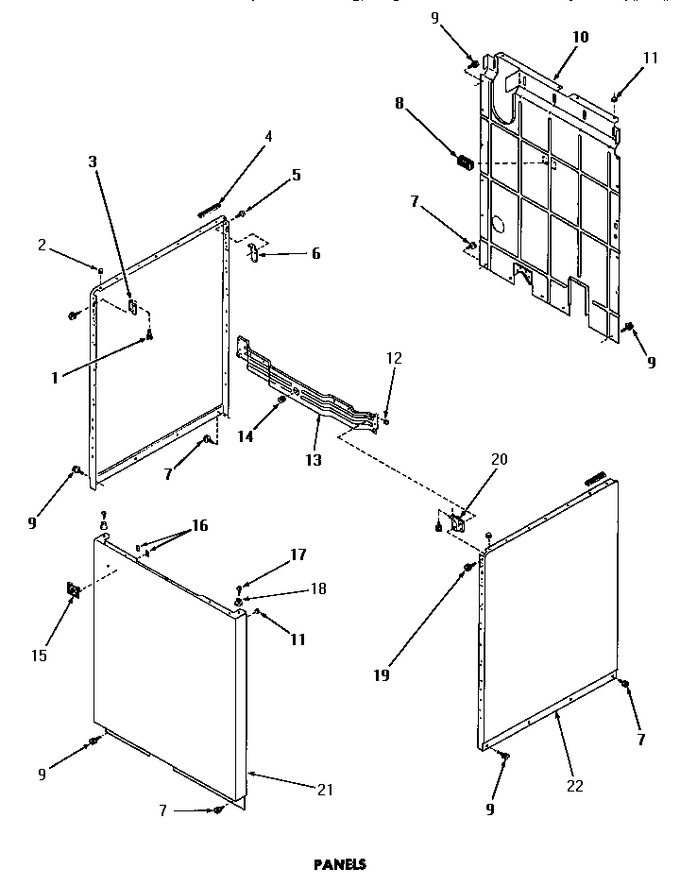

18 - Panels


19 - Power Cord, Wire & Terminals


20 - Reservoir & Drain Valve


21 - Reservoir & Drain Valve


22 - Transmission Assy


23 - Water Inlet & Filler Hose


24 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23008		Screw,10-24 X 3/4 Sems				$ 6.95
2	21176		Bumper		Appelez-nous	-
3	22847		Bracket		Appelez-nous	-
3	26691		Bracket,hold Down-l.h.		Appelez-nous	-
4	80312		Bumper Pad				$ 20.03
5	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
6	52487		Lug,hold-down		Appelez-nous	-
7	WP27001200		Hex Head Screw   (Replaces: 26415)				$ 6.91
8	23257		Pad,bumper		Appelez-nous	-
9	26592		Hex Head Screw		Appelez-nous	-
10	24342GR		Rear Panel, Gray		Appelez-nous	-
11	20387		Bumper		Appelez-nous	-
12	25987		Nut,speed		Appelez-nous	-
12	21747		Nut,speed		Appelez-nous	-
13	21262		Cross Brace, Front				$ 28.99
14	25959		Grommet		Appelez-nous	-
15	22086		Monogram				$ 13.42
16	22161		Clip		Appelez-nous	-
17	Q6535		Screw,10b-16 X 3/4 Rou		Appelez-nous	-
18	23020		Mount,panel		Appelez-nous	-
19	03814		Screw,10-24 X 1/2 Roun		Appelez-nous	-
19	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
20	22846		Bracket		Appelez-nous	-
20	26690		Bracket,hold Down-r.h.		Appelez-nous	-
21	24687C		Front Panel, Coppertone		Appelez-nous	-
21	24687W		Front Panel, White		Appelez-nous	-
21	24687H		Front Panel, Harvest Gold		Appelez-nous	-
21	24687A		Front Panel, Avocado		Appelez-nous	-
22	24336C		Side Panel, Right Or Left, Cop		Appelez-nous	-
22	24336A		Side Panel, Right Or Left, Avo		Appelez-nous	-
22	24336W		Xreplace		Appelez-nous	-
22	24336H		Side Panel, Right Or Left, Har		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
