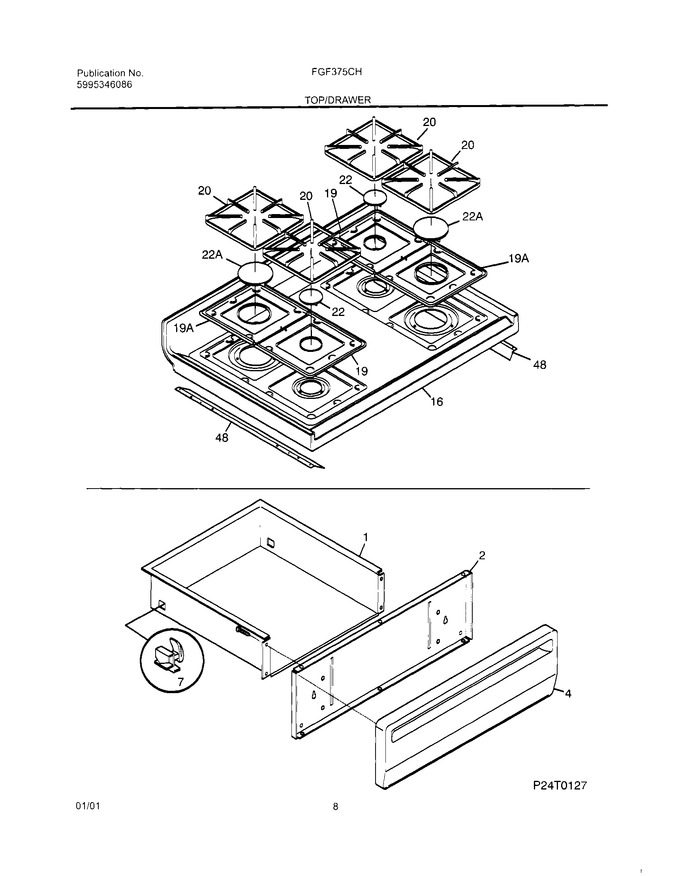

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	5303288582		Shield-drawer,liner ,galv Steel ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer Front,white		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303307709		Main Top, White		Appelez-nous	-
19	316011413		Pan-burner, Gray, Small, (2)				$ 113.87
19	316011417		Pan-burner,large ,gray				$ 102.20
20	316085205		Grate, Gray, (4)		Appelez-nous	-
22	316098509		Cap-burner,large ,gloss Gray		Appelez-nous	-
22	316122101		Cap-burner,small ,gray ,(4)				$ 34.85
48	316077401		Shield,deflector ,main Top Panel ,(2)		Appelez-nous	-
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089600		Spacer-drawer, (2)		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02
