SELECT A DIAGRAM

01 - Accessories


02 - Agitator Post And Spin Tub


03 - Agitator, Shaft & Fabric Softener Disp


04 - Bleach Dispenser


05 - Boot, Chassis And Drain Tub


06 - Cabinet Top And Loading Door


07 - Control Panel, Control Hood And Controls


08 - Counterbalance Weight, Brkt & Mtg Plate


09 - Door Safety Switch


10 - Drain


11 - Main Bearing Assy


12 - Mixing Valve


13 - Mixing Valve Assemblies


14 - Mixing Valve Assemblies


15 - Motor And Fluid Drive


16 - Panels


17 - Power Cord, Wire And Terminals


18 - Pump Assy


19 - Reservoir & Drain Valve


20 - Reservoir & Drain Valve


21 - Transmission Assy


22 - Water Inlet & Filler Hose


23 - Water Inlet & Filler Hose

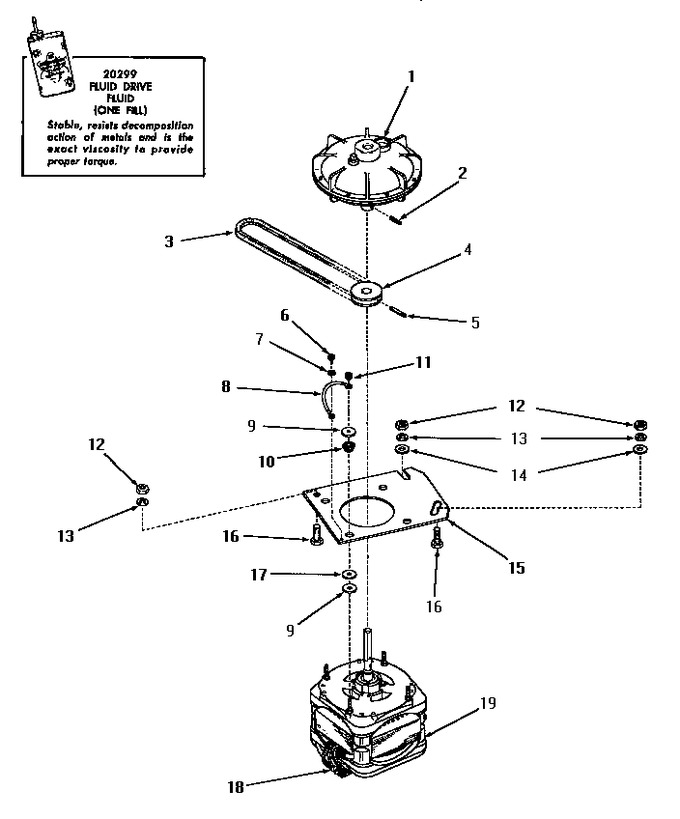

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24706		Assy,fluid Drive		Appelez-nous	-
2	24703		Pin,roll		Appelez-nous	-
3	23759		Belt				$ 6.75
4	26116		Pulley,drive		Appelez-nous	-
5	23750		Pin,roll		Appelez-nous	-
6	WP3351614		Screw, 10-24x3/8 Hex   (Replaces: 20530)			Immediately	$ 6.26
7	21735		Lockwasher,no.10 Intshkp		Appelez-nous	-
8	25484		Ground Wire		Appelez-nous	-
9	COMM PART		Washer   (Replaces: 20103)		Appelez-nous	-
10	20102		Washer		Appelez-nous	-
11	23604		Nut,hex 10-32 Lock		Appelez-nous	-
12	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85
13	20277		Lockwasher,3/8 Std X 3		Appelez-nous	-
14	20279		Washer,13/32idx13/16od				$ 2.85
15	23769		Plate,mounting		Appelez-nous	-
16	20255		Screw,3/8-16 X 1 Hex H		Appelez-nous	-
17	20104		Washer		Appelez-nous	-
18	24139		Switch,motor		Appelez-nous	-
19	26069		X Assy,motor & Pulley		Appelez-nous	-
NI	20299		Fluid Drive Fluid-bulk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
