SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

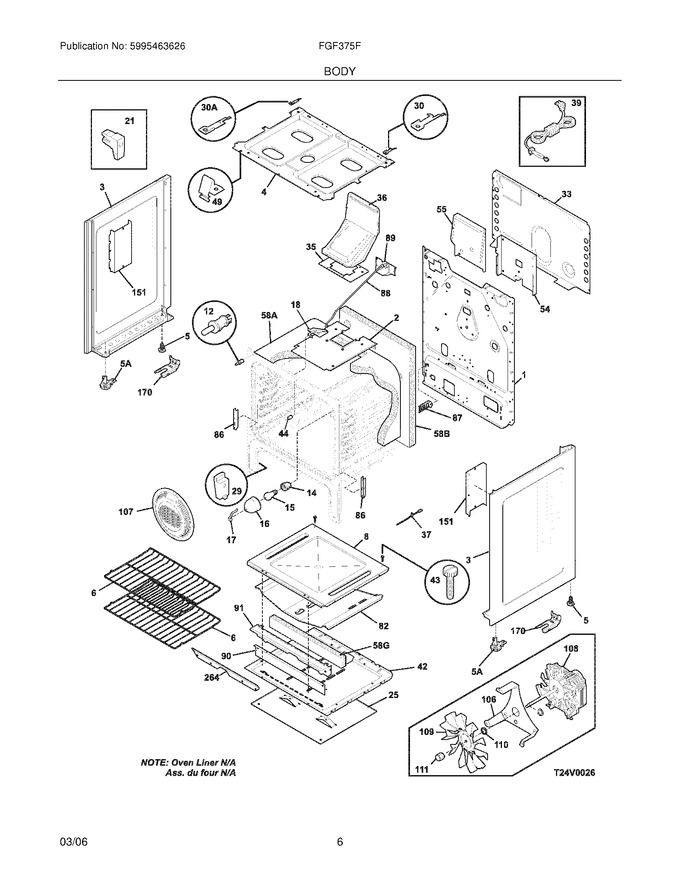

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401600		Back,main		Appelez-nous	-
2	316402201		Shield,oven Top		Appelez-nous	-
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400116)				$ 140.85
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400117)				$ 140.85
4	316201403		Burner Box				$ 106.73
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316404500		Rack,oven				$ 124.95
8	316400603		Panel,oven Bottom			Immediately	$ 186.56
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
25	316406200		Shield,heat ,lower				$ 87.97
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 23.82
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
33	316402500		Shield,rear Wall				$ 120.49
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316208901		Flue				$ 129.68
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
42	316400703		Shield,wool ,lower		Appelez-nous	-
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	316246501		Spacer,oven Door				$ 12.13
49	316234200		Clip,maintop Mtg ,(2)				$ 46.78
54	316404200		Shield,heat				$ 57.75
55	5304510473		Shield,flue   (Replaces: 316404800)				$ 23.39
82	316400801		Shield,bake Burner				$ 164.57
86	316441300		Receptacle,hinge				$ 21.97
87	316401200		Bracket,harness		Appelez-nous	-
88	316232702		Rod,auto Latch   (Replaces: 316232700)				$ 12.89
90	316401100		Shield,main Front		Appelez-nous	-
91	316401000		Shield,front ,burner		Appelez-nous	-
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026701		Cover,fan				$ 408.89
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
110	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
170	316112500		Template,anti-tip				$ 3.55
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
264	316404700		Bracket,air Dam		Appelez-nous	-
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
58A	316403700		Insulation,oven Wrapper				$ 304.06
58B	316403600		Insulation,oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 15.08
F108	5304467897		Motor,convection   (Replaces: 316415700)				$ 231.90
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490001		Probe,oven Temp   (Replaces: 316217001)			Immediately	$ 68.80
F89	5304528973		Motor,latch/lock   (Replaces: 316415400)			Immediately	$ 52.34
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316432800		Clip,wire		Appelez-nous	-
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 14.18
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316437100		Brace,oven Top				$ 31.90
NI	316416601		Harness,wiring ,main		Appelez-nous	-
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw,8-18 X 11/16 ,black				$ 12.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
