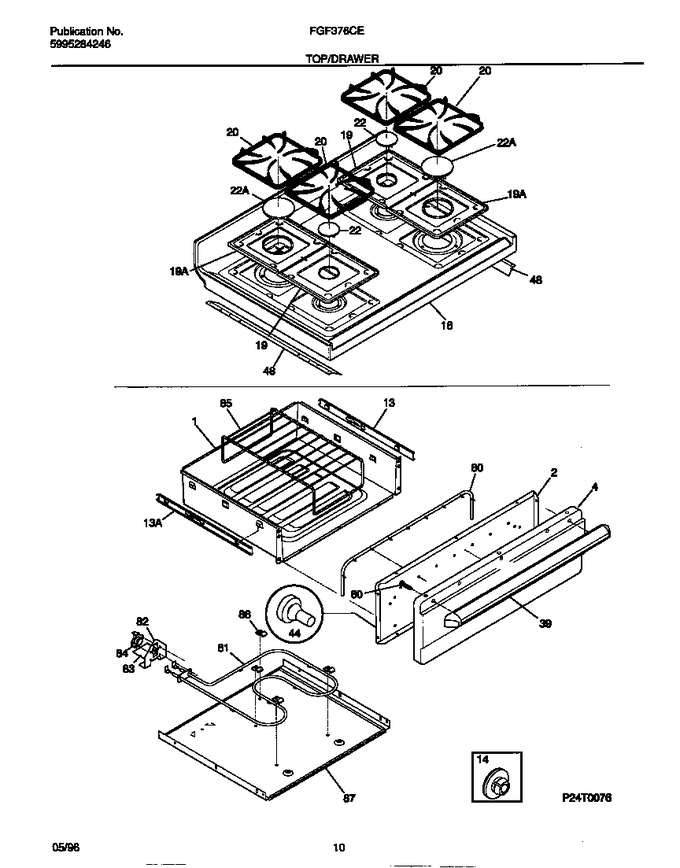

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
3	316077501		Shield-bodyside, (2) (not Illustrated)		Appelez-nous	-
4	316056207		Panel-drawer, Black		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307708		Main Top, Black		Appelez-nous	-
19	316011415		Pan-burner, Black, Small				$ 53.60
19	316011419		Pan-burner, Black, Large				$ 102.90
20	316085300		Grate, (4)		Appelez-nous	-
22	316011008		Cap-burner, Black, Large, (2)		Appelez-nous	-
22	316011001		Cap-burner, Black, Small, (2)		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
*15403	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*15404	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*15405	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*15406	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*15407	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
48A	316077400		Shield-maintop, (2)		Appelez-nous	-
48B	316077401		Shield-maintop		Appelez-nous	-
