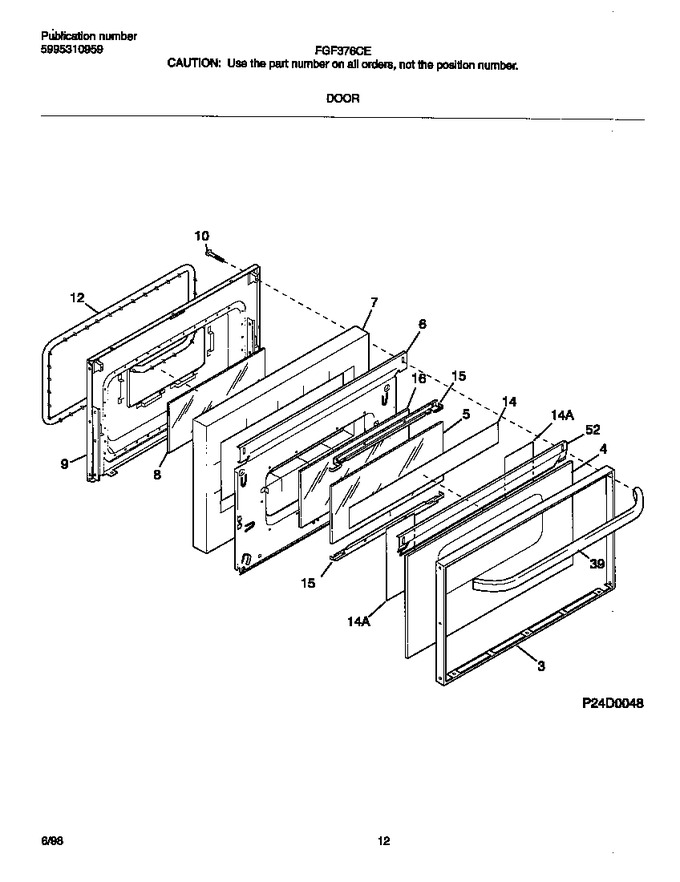

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089000		Glass-oven Door,black ,outer		Appelez-nous	-
5	316088700		Glass-oven Door, Inner				$ 70.17
6	316088401		Shield-wool		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
7	316076403		Insulation-door		Appelez-nous	-
8	316088600		Glass-oven Door, Airwash				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
14	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
39	316091117		Handle-door, Black, Oven		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*43063	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*43064	316065301		Plate Warning/caution		Appelez-nous	-
*43065	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*43066	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*43067	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*43068	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*43069	316008401		Washer,3/4 X 1/4 ,steel ,(2)				$ 11.34
