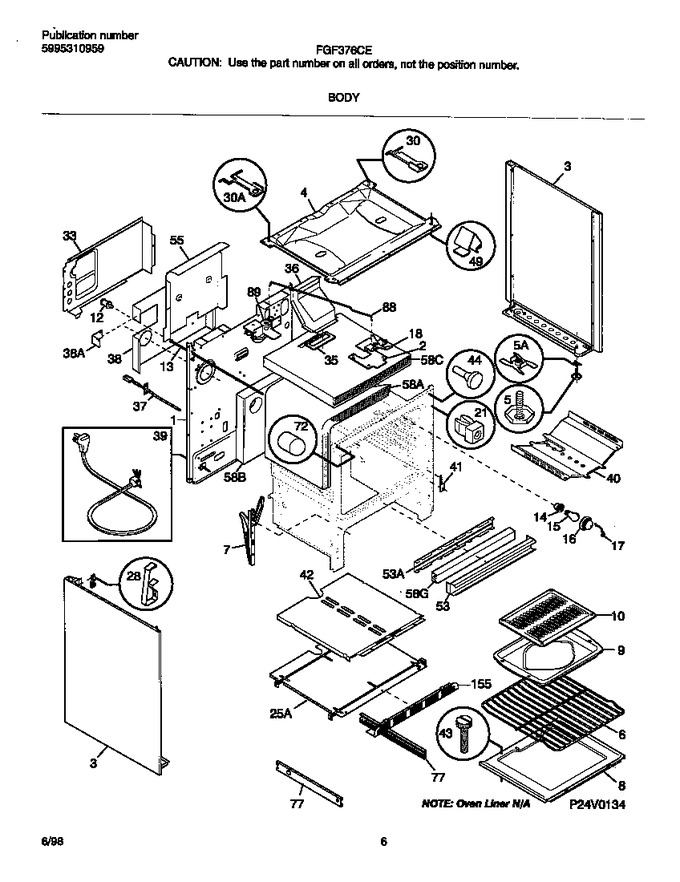

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029412		Back-main		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316081026		Panel-bodyside, Black, Rh		Appelez-nous	-
4	316011914		Burner Box		Appelez-nous	-
5	5303203397		Screw-leveling				$ 14.49
5	5303288460		Nut,t-type,leveling Screw				$ 27.14
6	316067902		Rack,oven			Immediately	$ 103.10
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	5303212540		Panel-oven Bottom		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	3205234		Insert, Broiler Pan		Appelez-nous	-
12	316027701		Switch-oven Light		Appelez-nous	-
13	316026800		Rod-light Switch/door				$ 36.86
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
18	316036300		Latch-door		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
25	316092300		Shield-warmer, Upper		Appelez-nous	-
28	3011813		Clip,wire ,bodyside				$ 14.79
30	316059200		Bracket-main Top, Rh		Appelez-nous	-
30	316059201		Bracket-main Top, Lh		Appelez-nous	-
33	316014401		Shield, Rear Wall		Appelez-nous	-
35	08067965		Gasket-flue		Appelez-nous	-
36	5303272844		Flue		Appelez-nous	-
37	5304497424		Probe-oven Temp   (Replaces: 316111200)			Immediately	$ 38.32
38	316051700		Shield-heat		Appelez-nous	-
38	316097100		Insulator, Shield		Appelez-nous	-
39	5304534000		Cord,electric Power   (Replaces: 3131425)			Immediately	$ 33.37
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw-oven Bottom, 8-18 X 1.438   (Replaces: 3131732)				$ 9.93
44	3131903		Bumper				$ 55.36
49	3205821		Clip-spring Mtg   (Replaces: 3051124)			Immediately	$ 35.44
53	5303288579		Shield,main Front		Appelez-nous	-
53	08067992		Shield-insulation		Appelez-nous	-
55	316107800		Shield,flue		Appelez-nous	-
58	316047705		Insulation, Oven Wrapper		Appelez-nous	-
58	316054200		Insulation, Oven Back		Appelez-nous	-
58	08067973		Insulation, Main Front				$ 51.74
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
72	5303285692		Cover-light/switch Rod		Appelez-nous	-
77	316094901		Rail-drawer,lh,outer		Appelez-nous	-
77	316094900		Rail-drawer Rh,rh, Outer		Appelez-nous	-
88	316026400		Rod-latch, Auto				$ 21.79
89	316028103		Motor-latch/lock		Appelez-nous	-
155	316095201		Shield-drawer, Front Warmer		Appelez-nous	-
*43049	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*43050	316081027		Panel-bodyside,black ,lh		Appelez-nous	-
*43052	3934058		Anti-tip Kit				$ 98.75
*43053	316116000		Screw,anti-tip ,(4)   (Replaces: 316078600)				$ 12.89
*43054	3203010		Clip, Hinge, (4)   (Replaces: 5303012323)				$ 14.89
*43055	316064600		Support,oven Bottom				$ 18.95
*43056	08067961		Fastener-power Cord		Appelez-nous	-
*43057	5303288570		Screw-heat Shield,hd Shldr Sqdr ,		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
