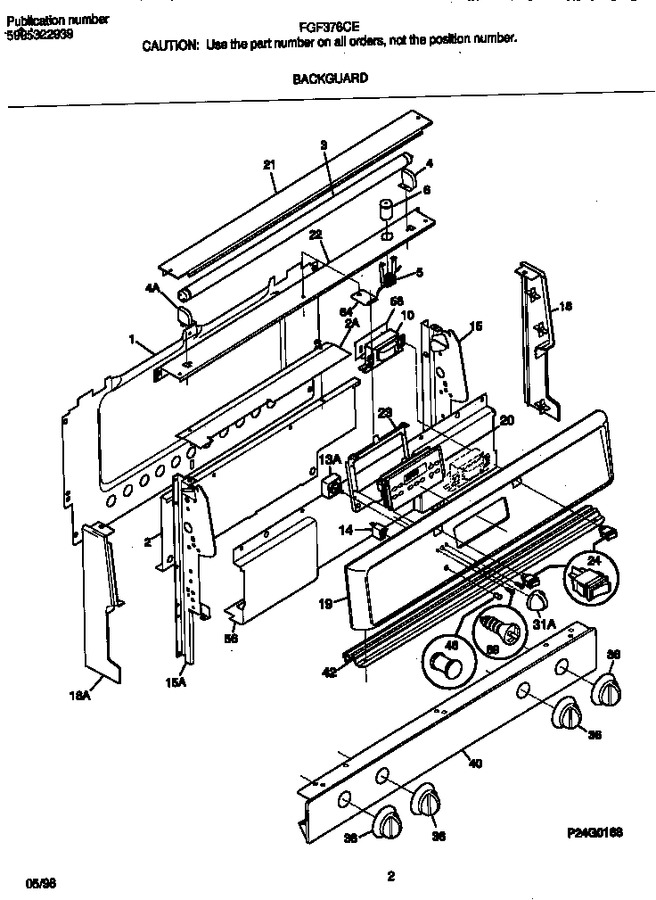

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316053800		Shield-backguard, Inner Top		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	316099800		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	316022500		Light/lamp, Warmer, Indicator ,			Immediately	$ 53.57
15	316049105		Support-backguard, Lh		Appelez-nous	-
15	316049104		Support-backguard, Rh		Appelez-nous	-
18	316026900		End Cap, Black, Rh				$ 53.24
18	316026901		End Cap, Black, Lh		Appelez-nous	-
19	316024536		Panel-control, Metal		Appelez-nous	-
20	316080011		Clock/timer, Slew		Appelez-nous	-
21	316024900		Trim, Canopy/shield, Black		Appelez-nous	-
22	316059903		Support-receptacle		Appelez-nous	-
23	316060002		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker,oven Light ,blk   (Replaces: 316005612)			Immediately	$ 11.38
31	316095600		Knob-warmer, Black		Appelez-nous	-
36	316109502		Knob-top Valve,black		Appelez-nous	-
40	316086821		Panel-manifold		Appelez-nous	-
42	316055301		Trim, Vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast		Appelez-nous	-
64	316062400		Retainer Plate		Appelez-nous	-
*05400	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*05401	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*05402	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*05404	316112500		Template, Anti-tip Bracket				$ 3.55
*05405	316001420		Harness, Wiring, Backguard		Appelez-nous	-
*05407	316089307		Overlay-clock		Appelez-nous	-
