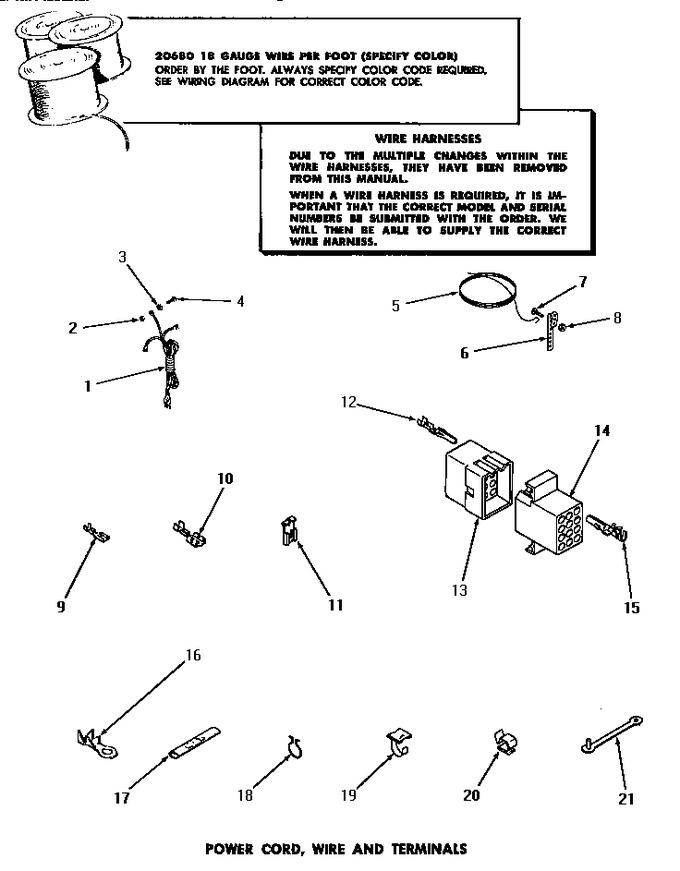

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22660		Power Cord And Plug				$ 39.67
2	03673		Nut		Appelez-nous	-
3	03815		Lockwasher,no.10 Ext Shk				$ 3.34
4	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
5	Y21429		Ground Wire		Appelez-nous	-
6	21430		Strap,ground		Appelez-nous	-
7	21431		Round Head Screw		Appelez-nous	-
8	Y20276		Nut		Appelez-nous	-
9	00112		Terminal,spade-3/16 Fe		Appelez-nous	-
10	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
11	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
12	Y00116		Terminal,pin-male		Appelez-nous	-
13	23033		Plug,9 Circuit		Appelez-nous	-
13	23041		Plug,6 Circuit		Appelez-nous	-
13	23040		Plug, 3 Circuit		Appelez-nous	-
13	23035		Plug,12 Circuit		Appelez-nous	-
13	23037		Plug,15 Circuit			Immediately	$ 19.74
14	Y23034		Terminal Block, 9 Circuit		Appelez-nous	-
14	23039		Receptacle,3 Circuit		Appelez-nous	-
14	23036		Receptacle,12 Circuit		Appelez-nous	-
14	23038		Receptacle,15 Circuit		Appelez-nous	-
14	23042		Receptacle		Appelez-nous	-
15	Y00117		Female Socket Terminal		Appelez-nous	-
16	00110		Terminal,ring-10 Stud				$ 9.23
17	21091		Connector Two 1/4 Inch Male		Appelez-nous	-
18	51291		Clip,wire		Appelez-nous	-
19	21793		Cable Clip		Appelez-nous	-
20	21036		Clip,cable				$ 62.49
21	22837		Strap,wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
