View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

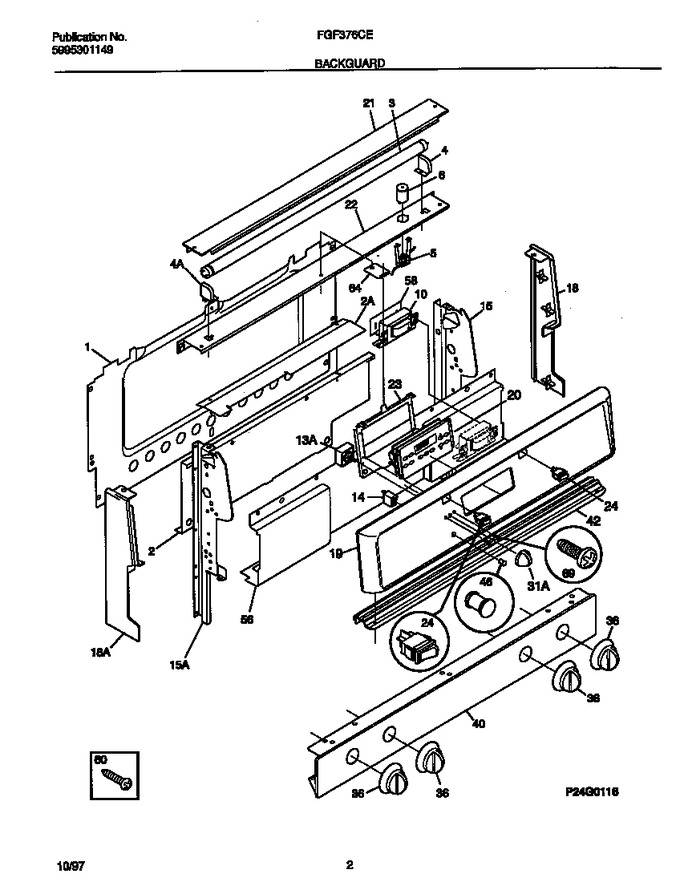

| 1 | 316028701 | Shield-backguard, Rear Wall |
|
- | |||||
| 2 | 316053800 | Shield-backguard, Inner Top |
|
- | |||||
| 2 | 316051600 | Shield,backguard ,inner |
|
- | |||||
| 3 | 3131275 | Lamp-fluorescent, Backguard |
|
$ 49.40 | |||||
| 4 | 3051223 | Receptacle-lamp, Lh |
|
- | |||||
| 4 | 3051222 | Receptacle-lamp, Rh |
|
- | |||||
| 5 | 316053200 | Receptacle, Starter |
|
- | |||||
| 6 | 3206218 | Starter-lamp |
|
$ 54.08 | |||||
| 10 | 316099800 | Ballast-lamp |
|
- | |||||
| 13 | 5304508926 | Switch-warmer, Infinite, Drawer/zone, (2) (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| 14 | 316022500 | Light/lamp, Indicator, 125 V |
|
Immediately | $ 53.57 | ||||
| 15 | 316049105 | Support-backguard, Lh |
|
- | |||||
| 15 | 316049104 | Support-backguard, Rh |
|
- | |||||
| 18 | 316026905 | End Cap, White, Lh |
|
$ 107.15 | |||||
| 18 | 316026904 | End Cap, White, Rh |
|
$ 127.68 | |||||
| 19 | 316024534 | Panel-control, Metal |
|
- | |||||
| 20 | 316080011 | Clock/timer, Slew |
|
- | |||||
| 20 | 316089306 | Overlay-clock (not Illustrated) |
|
$ 106.63 | |||||
| 21 | 316024902 | Trim-canopy/shield, White |
|
- | |||||
| 22 | 316059903 | Support-receptacle |
|
- | |||||
| 23 | 316060002 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527842 | Switch-rocker, Oven Light, White (Replaces: 316005607) |
|
Immediately | $ 16.13 | ||||
| 31 | 316095601 | Knob-warmer, White |
|
$ 23.78 | |||||
| 36 | 316049305 | Knob-top Valve, White, (4) |
|
- | |||||
| 40 | 316086822 | Panel-manifold |
|
- | |||||
| 42 | 316055300 | Trim, Vent |
|
- | |||||
| 46 | 316040201 | Lens-light/lamp, Indicator, Red, (2) |
|
- | |||||
| 56 | 316074907 | Deflector-flue, Black |
|
- | |||||
| 58 | 316043400 | Insulator-ballast, (2) |
|
- | |||||
| 60 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| 64 | 316062400 | Retainer, Plate, 64 |
|
- | |||||
| 69 | 5303292005 | Screw-switch Mtg, 8-32 X 5/32 |
|
- | |||||
| *98960 | 316519700 | Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *98961 | 5303288574 | Screw, Truss Head, 8-10 X 0.375, Handle |
|
- | |||||
| *98962 | 5303290188 | Screw, 6 Ov Sdr, 8 18 X 1\2, Chrome |
|
- | |||||
| *98963 | 316001420 | Harness, Wiring, Backguard |
|
- |
