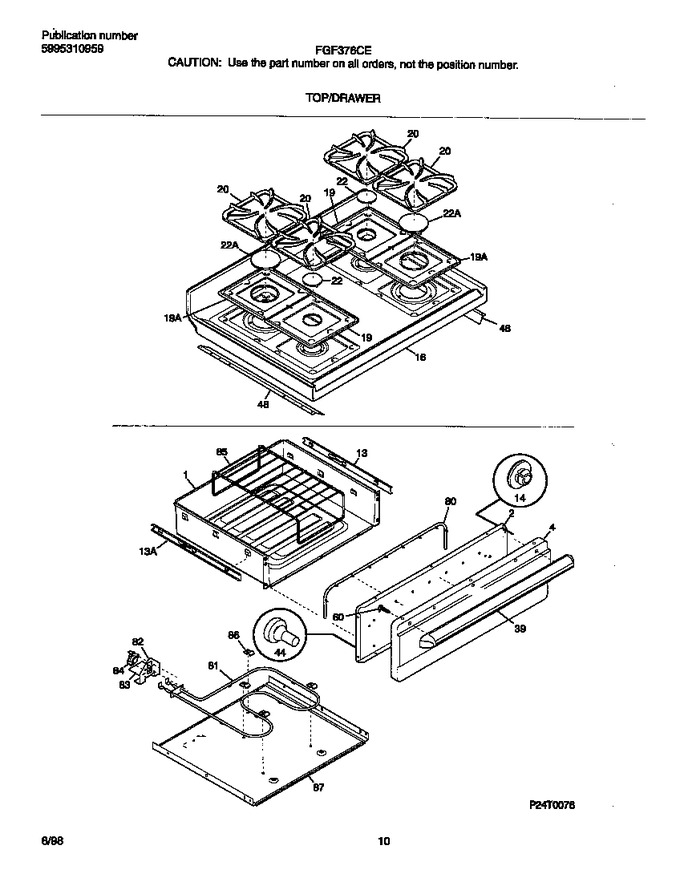

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316056201		Panel-drawer,white		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
13	316096501		Channel Drawer,lh,inner		Appelez-nous	-
13	316096500		Channel,drawer ,rh,inner		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307709		Main Top, White		Appelez-nous	-
19	316011417		Pan-burner, Gray, Large, (2)				$ 102.20
19	316011413		Pan-burner, Gray, Small, (2)				$ 113.87
20	316085304		Grate, (4)		Appelez-nous	-
22	316098502		Cap-burner,grey		Appelez-nous	-
39	316026106		Handle-drawer,white		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop,(2)		Appelez-nous	-
77	316094900		Rail-drawer Rh,rh, Outer		Appelez-nous	-
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
*43058	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*43059	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*43060	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*43061	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*43062	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
60A	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
60B	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle		Appelez-nous	-
87A	316091900		Base-warmer				$ 221.55
87B	316091902		Base-warmer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
