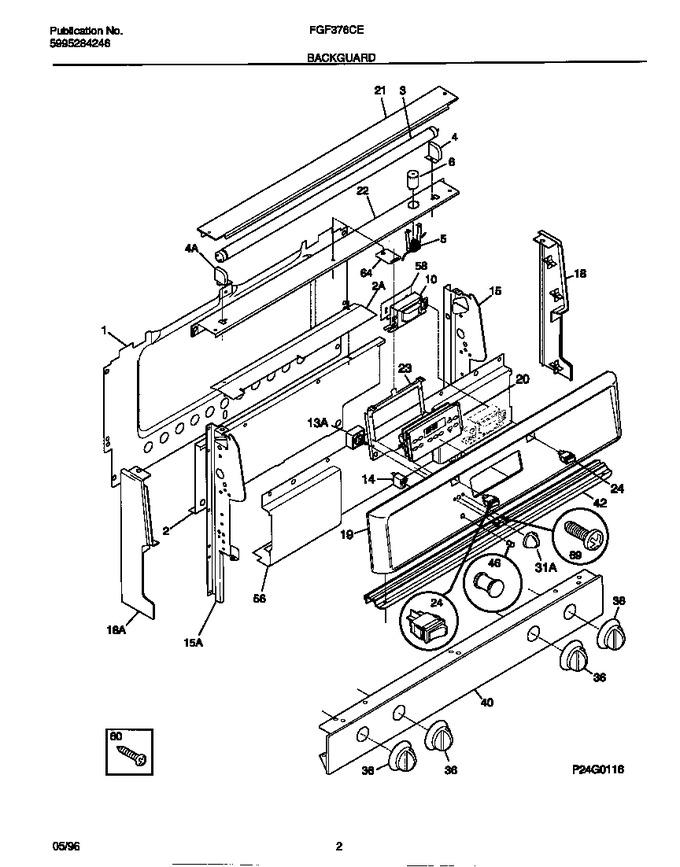

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316053801		Shield-backguard, Inner Top		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	5303051115		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
14	316022500		Light/lamp, Indicator, Red,250 V,(2)			Immediately	$ 53.57
15	316049106		Support, Backguard, Rh		Appelez-nous	-
15	316049107		Support, Backguard, Lh		Appelez-nous	-
18	316026907		End Cap, Almond, Lh		Appelez-nous	-
18	316026906		End Cap, Almond, Rh		Appelez-nous	-
19	316024535		Panel-control, Metal		Appelez-nous	-
20	316027413		Clock/timer, Eoc, Almond, With Overlay		Appelez-nous	-
21	316024903		Trim-canopy/shield, Almond		Appelez-nous	-
22	316059903		Support-receptacle		Appelez-nous	-
23	316060003		Bracket, Clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker, Almond, Oven Light		Appelez-nous	-
31	316095602		Knob-warmer, Almond		Appelez-nous	-
36	316049306		Knob-top Valve, Almond, (4)		Appelez-nous	-
40	316086823		Panel-manifold		Appelez-nous	-
42	316055301		Trim, Vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
64	316062400		Retainer, Plate, 64		Appelez-nous	-
*15400	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*15401	316001420		Harness, Wiring, Backguard		Appelez-nous	-
