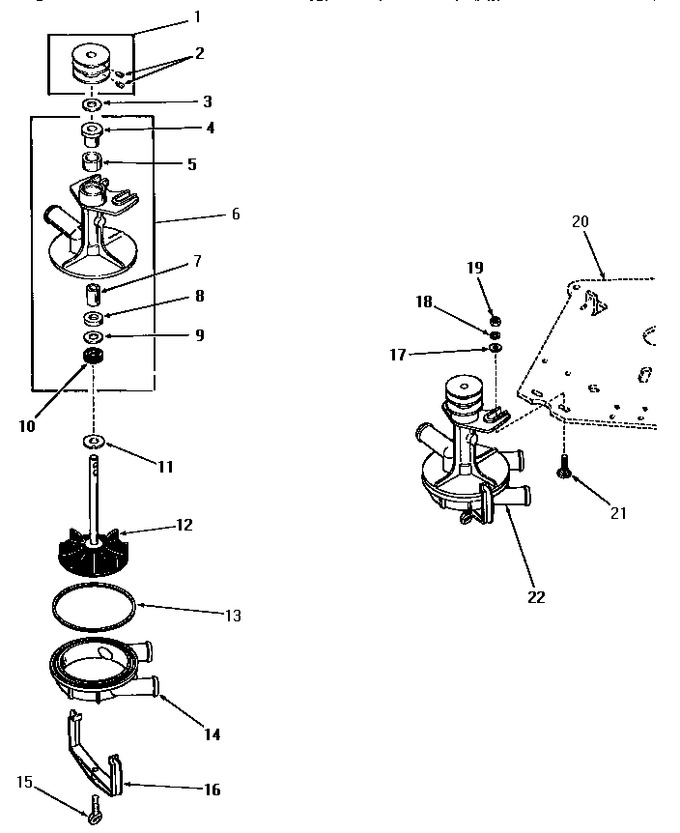

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23902		Assy,pulley		Appelez-nous	-
2	23960		Screw,1/4-20 X5/16 Hex		Appelez-nous	-
3	23897		Washer,.566idx1.00odx1		Appelez-nous	-
4	23882		Bearing		Appelez-nous	-
5	26478		Wick		Appelez-nous	-
6	23901		Assy,pump Body		Appelez-nous	-
7	23883		Bearing		Appelez-nous	-
8	23885		Washer,8/16idx1.00odx.		Appelez-nous	-
9	23887		Washer,37/64idx63/64od		Appelez-nous	-
10	23900		Seal		Appelez-nous	-
11	23886		Washer,.578idx1.25odx1				$ 1.55
12	23898		Assy,impeller		Appelez-nous	-
13	23892		Gasket		Appelez-nous	-
14	23877		Bottom,pump		Appelez-nous	-
15	20161		Screw,5/16-18 X 1-1/16		Appelez-nous	-
16	23877		Bottom,pump		Appelez-nous	-
17	20176		Washer,.2656idx9/16odx		Appelez-nous	-
18	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
19	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
20	Y00000000		See Note Mounting Plate		Appelez-nous	-
21	24390		Bolt		Appelez-nous	-
22	23907		Assy,pump		Appelez-nous	-
