SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

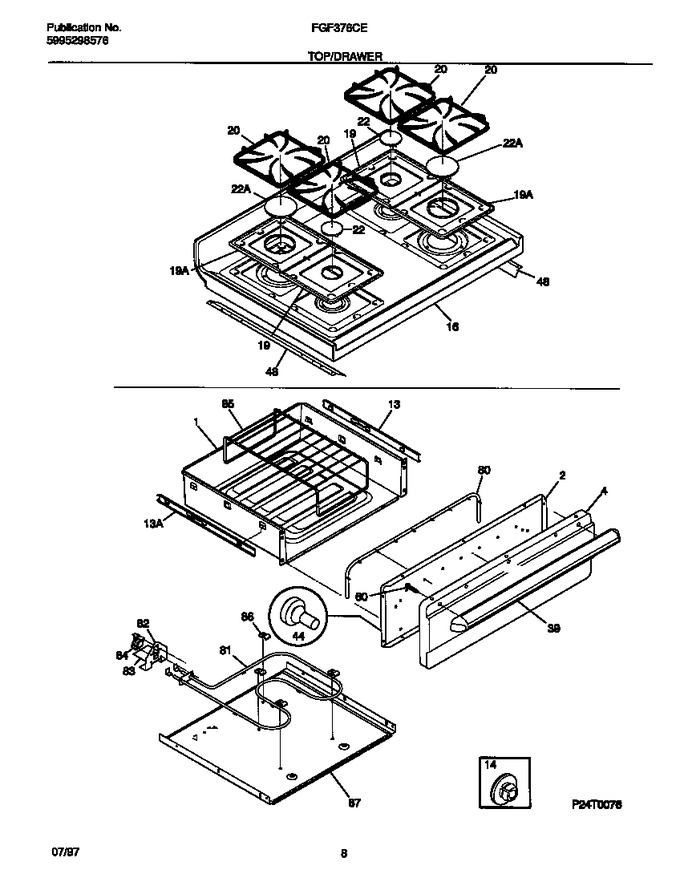

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307710		Main Top, Almond		Appelez-nous	-
19	316011414		Pan-burner, Almond, Small, (2)		Appelez-nous	-
19	316011418		Pan-burner, Almond, Large, (2)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316011010		Cap-burner, Almond, Large, (2)		Appelez-nous	-
22	316011004		Cap-burner, Almond, Small, (2)		Appelez-nous	-
39	316026104		Handle-drawer, Almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
*96086	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*96087	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*96088	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02
*96089	316089500		Screw, 10-16 X .486, Safety Valve, (4)				$ 13.46
*96090	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*96091	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*96092	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
