SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

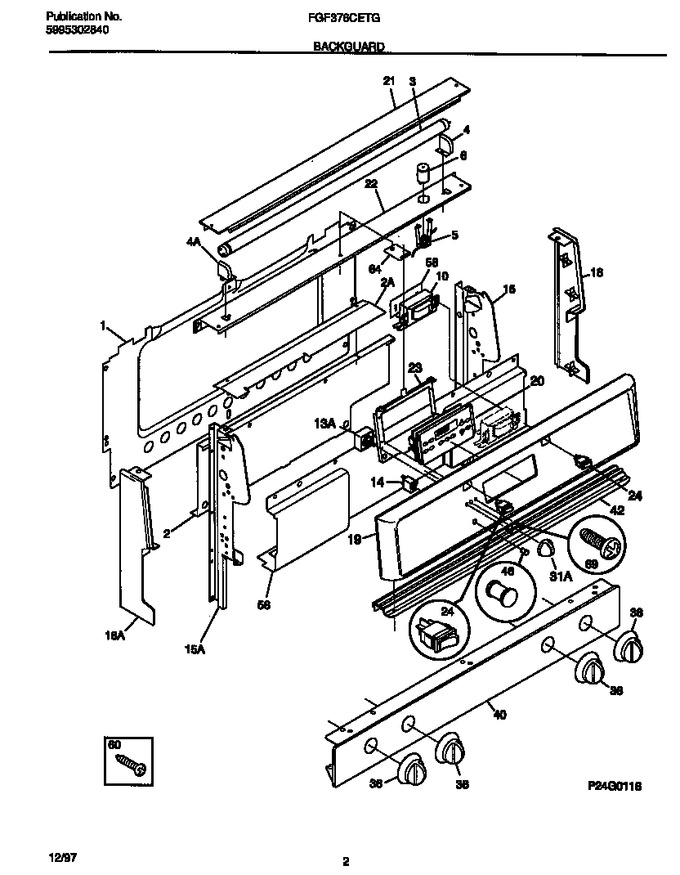

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
2	316053800		Shield-backguard, Inner Top		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051223		Receptacle-lamp, Lh		Appelez-nous	-
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
5	316053200		Receptacle, Starter		Appelez-nous	-
6	3206218		Starter-lamp				$ 54.08
10	316099800		Ballast-lamp		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone, (2)   (Replaces: 316095500)			Immediately	$ 84.18
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316049105		Support-backguard, Lh		Appelez-nous	-
15	316049104		Support-backguard, Rh		Appelez-nous	-
18	316026906		End Cap, Almond, Rh		Appelez-nous	-
18	316026907		End Cap, Almond, Lh		Appelez-nous	-
19	316024535		Panel-control, Metal		Appelez-nous	-
20	316080011		Clock/timer, Slew		Appelez-nous	-
21	316024903		Trim-canopy/shield, Almond		Appelez-nous	-
22	316059903		Support-receptacle		Appelez-nous	-
23	316060002		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker,oven Light ,almond		Appelez-nous	-
31	316095602		Knob-warmer, Almond, (2)		Appelez-nous	-
36	316049306		Knob-top Valve, Almond, (4)		Appelez-nous	-
40	316086823		Panel-manifold		Appelez-nous	-
42	316055301		Trim, Vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red, (2)		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
58	316043400		Insulator-ballast, (2)		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
64	316062400		Retainer, Plate, 64		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32		Appelez-nous	-
*84320	316089308		Overlay-clock		Appelez-nous	-
*84321	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*84322	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
*84323	5303290188		Screw, 6 Ov Sdr, 8 18 X 1\2, Chrome		Appelez-nous	-
*84324	316001420		Harness, Wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
