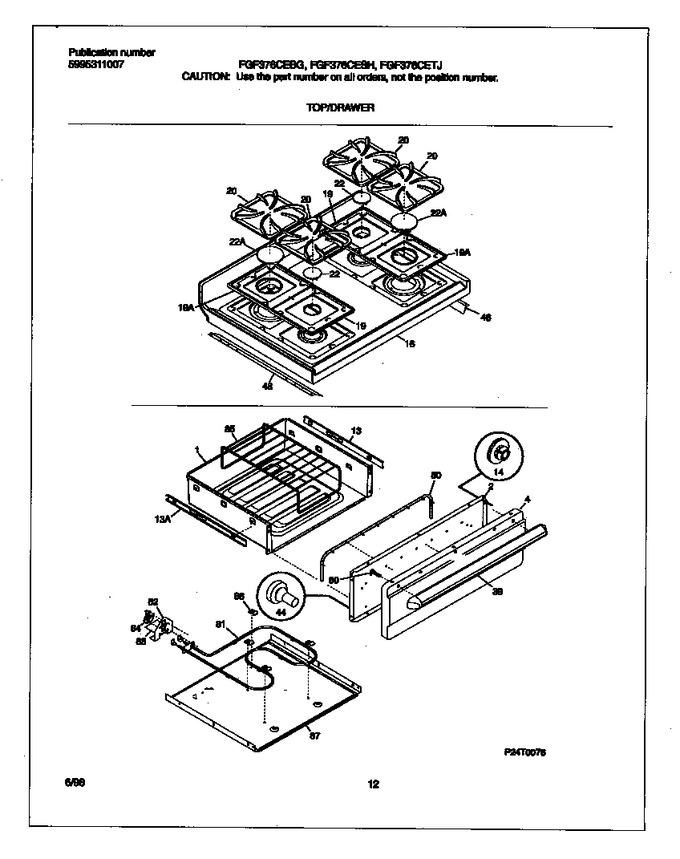

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
13	316105600		Glide-drawer,rear,rh		Appelez-nous	-
13	318259507		Glide-drawer,rear,lh   (Replaces: 316105601)			Immediately	$ 69.01
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307710		Main Top, Almond		Appelez-nous	-
19	316011414		Pan-burner, Almond, Small, (2)		Appelez-nous	-
19	316011418		Pan-burner, Almond, Large, (2)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316098502		Cap-burner,grey		Appelez-nous	-
39	316026107		Handle-drawer,almond		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop,(2)		Appelez-nous	-
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
*39701	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*39702	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*39703	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*39705	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*39706	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
60A	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
60B	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
87A	316091900		Base-warmer				$ 221.55
87B	316091902		Base-warmer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
