SELECT A DIAGRAM

01 - 23907 & 24304 Pump Assemblies


02 - 24596 & 24597 Mixing Valve Assemblies


03 - 25178 Pump Assy


04 - 25832 & 25833 Mixing Valve Assemblies


05 - Accessories


06 - Agitator Post & Spin Tub


07 - Agitator, Shaft & Fabric Softener Disp


08 - Bleach Dispenser


09 - Boot, Chassis & Drain Tub


10 - Cabinet Top & Loading Door


11 - Control Hood

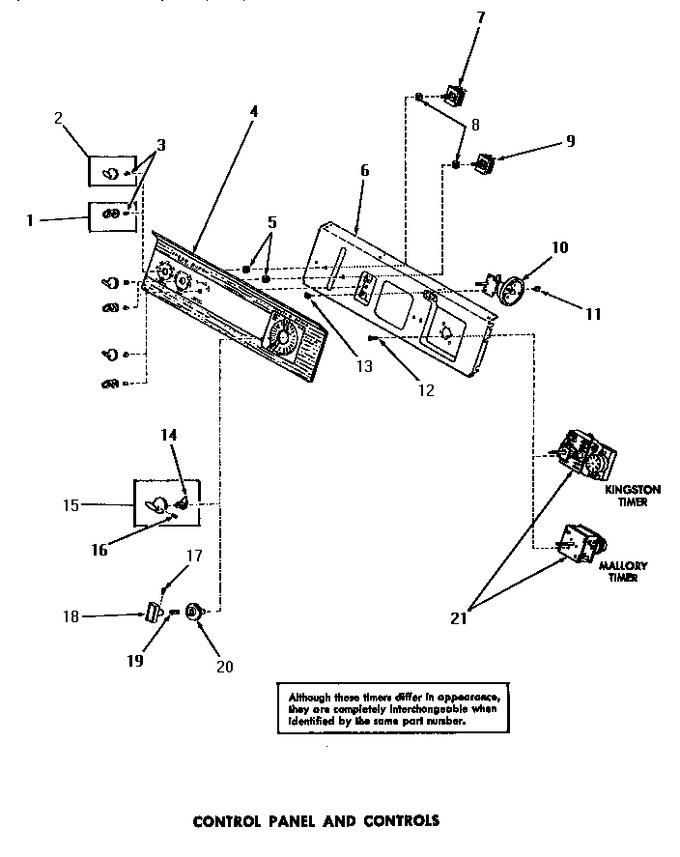

12 - Control Panel & Controls


13 - Counterbalance Weight, Brkt & Mtg Plate


14 - Door Safety Switch


15 - Drain


16 - Main Bearing Assy


17 - Mixing Valves


18 - Motor & Fluid Drive


19 - Panel Supp Plate, Ctrl Hood Ends & Bulb


20 - Panels


21 - Power Cord, Wire & Terminals


22 - Reservoir & Drain Valve


23 - Reservoir & Drain Valve


24 - Transmission Assy


25 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24291		Assy,knob		Appelez-nous	-
2	23402		Knob,control		Appelez-nous	-
3	23392		Clip For 26816 Knob		Appelez-nous	-
4	26283		Control Panel				$ 17.53
5	24391		Knurled Nut		Appelez-nous	-
6	Y00000000		See Note Panel Support Plate		Appelez-nous	-
7	24392		Switch Temp		Appelez-nous	-
8	91176		Lockwasher,3/8 Intshkp				$ 1.44
9	24431		Speed Switch		Appelez-nous	-
10	26051		Switch,pressure		Appelez-nous	-
11	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
12	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
13	24522		Nut,speed-8ab-18 C1995		Appelez-nous	-
14	24857		Indicator		Appelez-nous	-
15	24858		Assy,knob-timer		Appelez-nous	-
16	25285		Setscrew		Appelez-nous	-
17	26318		Screw,8-32 X 1/4 Set S		Appelez-nous	-
18	26321		Timer Knob		Appelez-nous	-
19	26319		Spring		Appelez-nous	-
20	26326		Timer Knob Indicator		Appelez-nous	-
21	24756		Timer		Appelez-nous	-
21	26324		Timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
