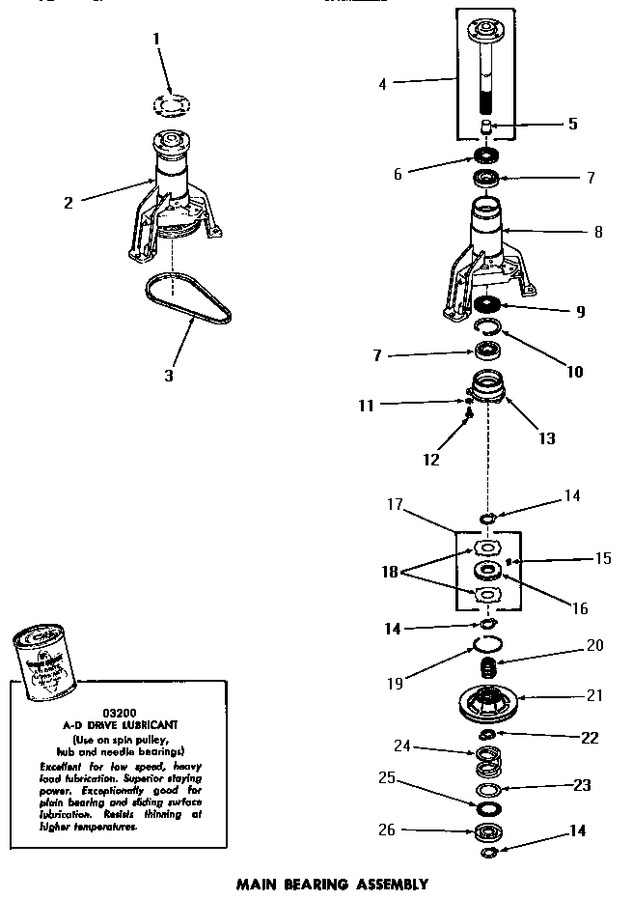

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Gasket		Appelez-nous	-
2	26018		Assy,bearing Housing-m				$ 6.90
3	23759		Belt				$ 6.75
4	23731		Assy,spin Shaft		Appelez-nous	-
5	25854		Bearing		Appelez-nous	-
6	Y21659		Seal		Appelez-nous	-
7	28944RP		Bearing   (Replaces: 20012)			Immediately	$ 34.88
8	25979		Housing,main Bearing		Appelez-nous	-
9	26247		Slinger,water		Appelez-nous	-
10	20084		Ring,retaining		Appelez-nous	-
11	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
12	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
13	23639		Retainer		Appelez-nous	-
14	23724		Ring,retaining		Appelez-nous	-
15	24500		Clip,spring		Appelez-nous	-
16	23708		Assy,brake Disk		Appelez-nous	-
17	24599		Assy,brake Disk		Appelez-nous	-
18	23637		Disc,brake		Appelez-nous	-
19	Y23720		Ring,snap		Appelez-nous	-
20	23634		Hub		Appelez-nous	-
21	24690		Assy,spin Pulley		Appelez-nous	-
22	23635		Stop		Appelez-nous	-
23	23722		Race,bearing		Appelez-nous	-
24	23723		Spring		Appelez-nous	-
25	23721		Bearing,needle		Appelez-nous	-
26	23640		Retainer		Appelez-nous	-
NI	03200		A-d Drive Lubricant				$ 29.08
