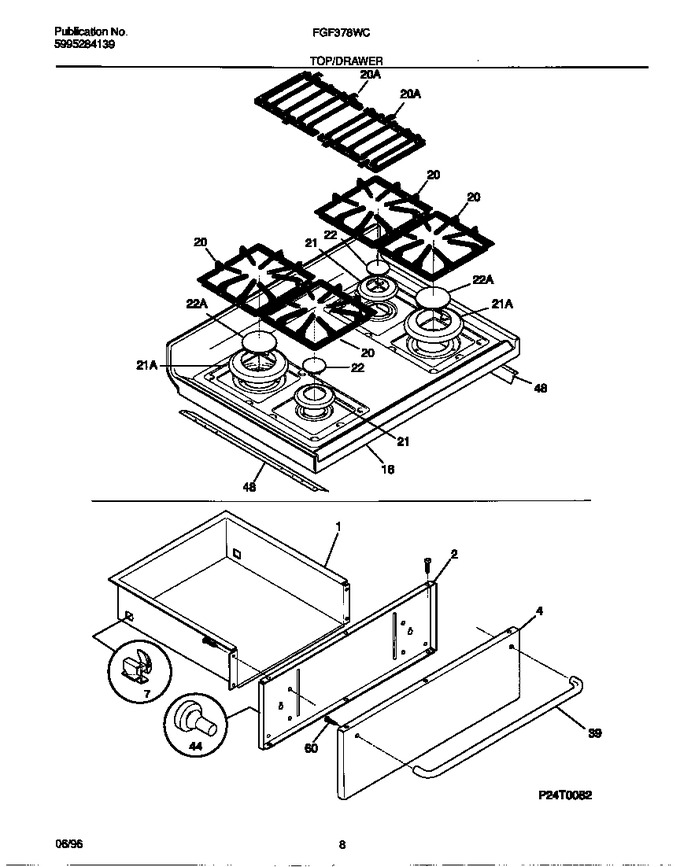

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
20	316084600		Grate, Center, (2)		Appelez-nous	-
20	316084500		Grate, (4)		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
21	316011304		Trim-ring-burner, Black, Large				$ 97.23
22	316011015		Cap-burner, Matte Black, Large, (2)		Appelez-nous	-
22	316011014		Cap-burner, Matte Black, (4), Small		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
60	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*56125	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*56126	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*56127	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*56128	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*56129	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
16A	5303307708		Main Top, Black		Appelez-nous	-
16B	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16C	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
4A	316079401		Panel-drawer, Stainless		Appelez-nous	-
4B	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
