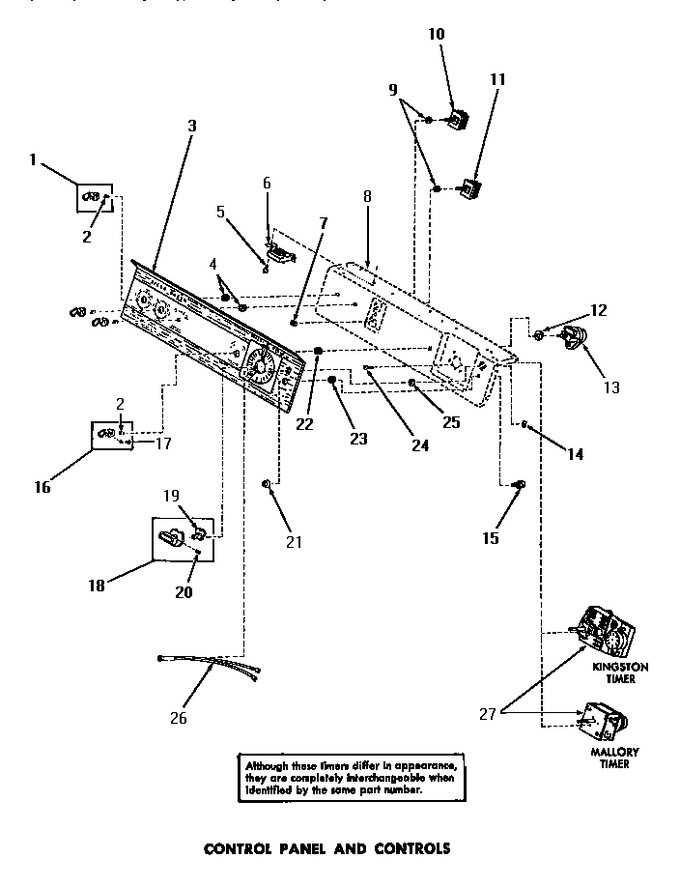

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	24291		Assy,knob		Appelez-nous	-
2	23392		Clip For 26816 Knob		Appelez-nous	-
3	Y25147		Control Panel		Appelez-nous	-
4	24391		Knurled Nut		Appelez-nous	-
5	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
6	21975		Ballast		Appelez-nous	-
7	24522		Nut,speed-8ab-18 C1995		Appelez-nous	-
8	Y00000000		See Note Panel Support Plate		Appelez-nous	-
9	91176		Lockwasher,3/8 Intshkp				$ 1.44
10	24392		Switch Temp		Appelez-nous	-
11	24431		Speed Switch		Appelez-nous	-
12	25820		Lockwasher,1/2 Int Shk		Appelez-nous	-
13	25054		Timer,soak				$ 20.79
14	25042		Speed Nut				$ 14.19
15	23401		Switch		Appelez-nous	-
16	25049		Knob,control				$ 17.69
17	Y22579		Setscrew		Appelez-nous	-
18	24290		Assy,knob-timer		Appelez-nous	-
19	24283		Indicator,timer Knob		Appelez-nous	-
20	20310		Screw,8-32 X 1/4 Hex S		Appelez-nous	-
21	23399		Switch Collar		Appelez-nous	-
22	23406		Knurled Nut		Appelez-nous	-
23	23400		Ferrule		Appelez-nous	-
24	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
25	25043		Washer				$ 13.49
26	25045		Indicator Light				$ 14.69
27	25146		Timer		Appelez-nous	-
