SELECT A DIAGRAM

01 - (serial Nos. S11n286 And 21r99117)


02 - Accessories

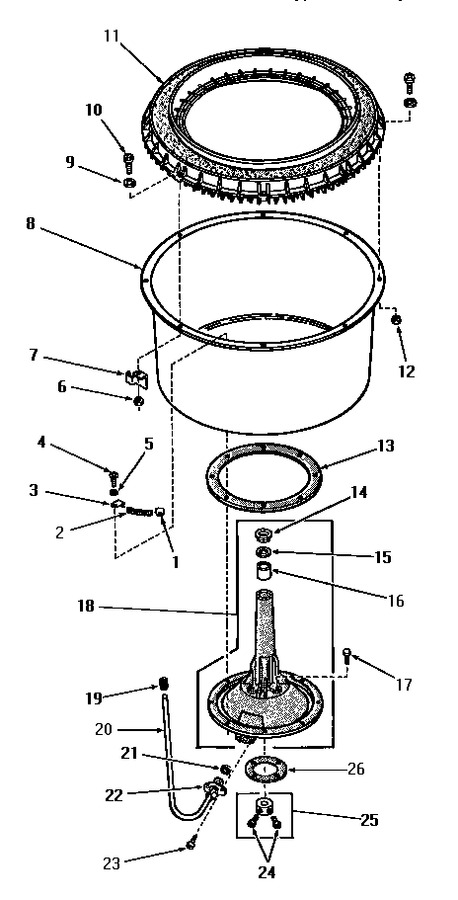

03 - Agitator Post And Spin Tub


04 - Agitator, Shaft & Fabric Softener Disp


05 - Bleach Dispenser


06 - Boot, Chassis And Drain Tub


07 - Cabinet Top And Loading Door


08 - Control Hood


09 - Control Panel And Controls


10 - Door Safety Switch


11 - Drain


12 - Main Bearing Assy


13 - Mixing Valve


14 - Mixing Valve Assemblies


15 - Mixing Valve Assemblies


16 - Motor And Fluid Drive


17 - Pan Supp Plt/ctrl Hood Ends & Flour Tube


18 - Panels


19 - Power Cord, Wire And Terminals


20 - Pump Assemblies


21 - Pump Assy


22 - Reservoir & Drain Valve


23 - Reservoir & Drain Valve


24 - Transmission Assy


25 - Water Inlet & Filler Hose


26 - Water Inlet & Filler Hose


27 - Water Inlet & Filler Hose


28 - Xounterbalance Weight, Brkt & Mtg Plate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22446		Clip		Appelez-nous	-
2	22144		Spring		Appelez-nous	-
3	22447		Clip		Appelez-nous	-
4	20260		Screw,5/16-18 X 3/4 Rd		Appelez-nous	-
5	20121		Gasket		Appelez-nous	-
6	26678		Nut,self-locking		Appelez-nous	-
7	22025		Bracket		Appelez-nous	-
8	22382		Tub,spin		Appelez-nous	-
9	25100		Washer,17/64idx1/2odx.				$ 199.99
10	25251		Phillips Head Screw		Appelez-nous	-
11	24931		Balance Ring		Appelez-nous	-
12	25250		Nut,1/4-20 Hex Nyllock		Appelez-nous	-
13	20122		Gasket		Appelez-nous	-
14	23685		Bearing		Appelez-nous	-
15	23684		Seal		Appelez-nous	-
16	23686		Bearing		Appelez-nous	-
17	20261		Screw,cap		Appelez-nous	-
18	23993		Assy,center Column		Appelez-nous	-
19	22351		Sleeve		Appelez-nous	-
20	22359		Tube,sediment		Appelez-nous	-
21	20110		Gasket		Appelez-nous	-
22	26046		Bracket,sediment Tube		Appelez-nous	-
23	20852		Screw,10-24 X 1/2 Hex		Appelez-nous	-
24	23481		Setscrew		Appelez-nous	-
25	20377		No Longer Available				$ 18.87
26	20120		Gasket		Appelez-nous	-
NI	243P3		Kit,agitator Post		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
