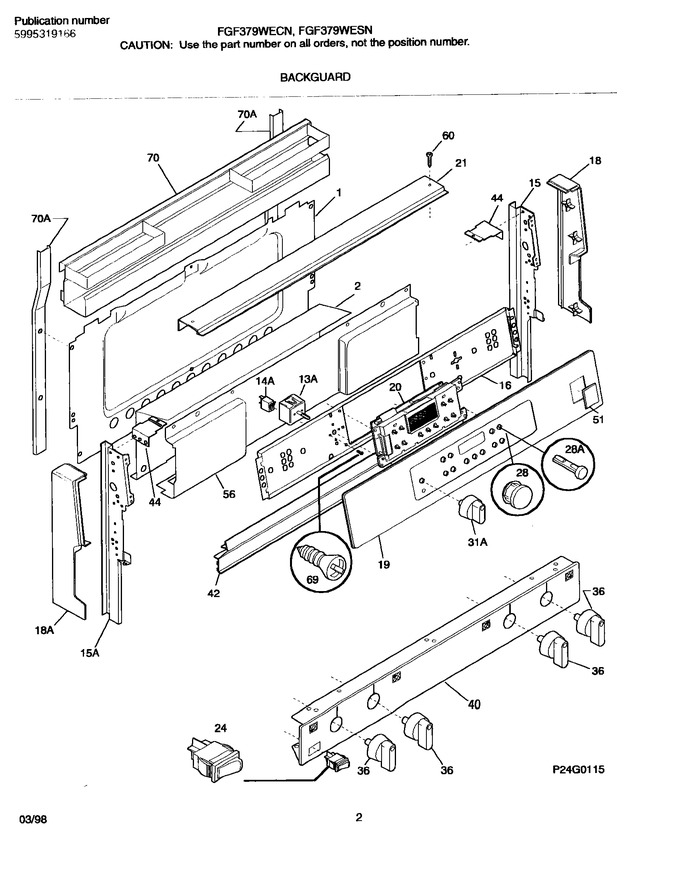

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038800		Shield-backguard, Inner		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
16	316042613		Plate, Instrument Mtg		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
19	316028381		Panel-control, Assy, Glass, Stainless, Black		Appelez-nous	-
19	5303272836		Clip - Backguard		Appelez-nous	-
21	316039201		Trim-canopy/shield		Appelez-nous	-
28	316015102		Pugh Button, Clock/timer/eoc, Black				$ 50.35
36	316085000		Knob-top Valve, (4)				$ 77.18
40	316086824		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
70	316069700		Rack-spice, Stainless		Appelez-nous	-
14A	3131963		Light-indicator,warmer Dwr/zone				$ 64.31
15A	316023109		Support,backguard ,lh		Appelez-nous	-
18A	316021801		End Cap, Black, Lh				$ 94.29
28A	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
31A	316095700		Knob-warmer, Black		Appelez-nous	-
70A	5303500001		Support, Spice Rack		Appelez-nous	-
F13A	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
F20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
F24	316083101		Switch-rocker, Oven Light, Black, Rh				$ 85.01
NI	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316001435		Harness-wiring, Backguard		Appelez-nous	-
NI	316519700		Screw,cup Pt,8-18x3/8,hinge,ind Lt Brkt,manf Pnl   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
