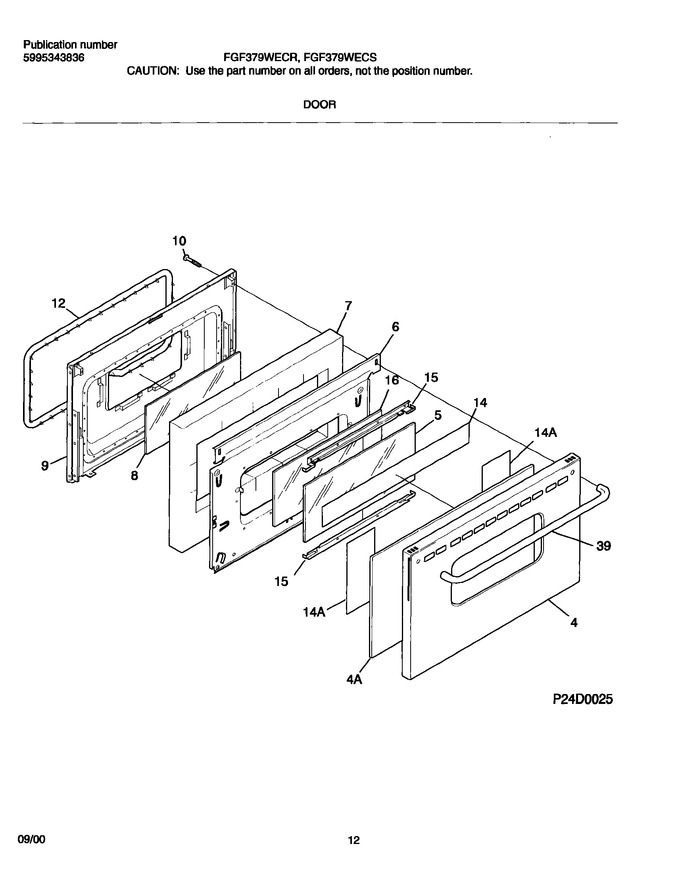

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316079300		Panel-oven Door, Stainless, Outer		Appelez-nous	-
5	316088601		Glass-oven Door, Inner				$ 243.08
6	316088405		Shield-wool		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
8	316088701		Glass-oven Door, Airwash		Appelez-nous	-
9	316066610		Liner-oven Door		Appelez-nous	-
10	316001006		Screw-handle Mtg, 10-32		Appelez-nous	-
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
39	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
14A	3131360		Reflector, Aluminum Foil		Appelez-nous	-
4A	316083900		Glass-oven Door, Outer		Appelez-nous	-
F12	5303131601		Seal-oven Door				$ 374.63
NI	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
NI	5303288567		Scrwe, 8-18 X 3/8, (4)		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316065301		Plate Warning/caution		Appelez-nous	-
NI	316085500		Bracket-window		Appelez-nous	-
NI	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
