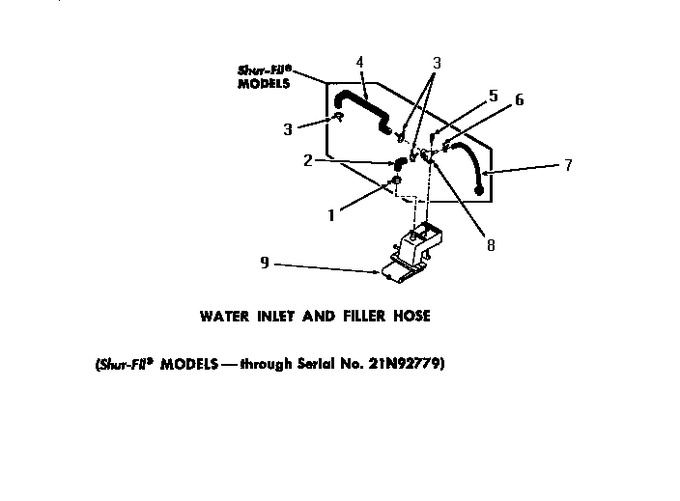

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP596669		Hose Clamp   (Replaces: 25988)			Immediately	$ 7.56
2	24432		Filler Elbow Hose		Appelez-nous	-
3	80479		Hose Clamp		Appelez-nous	-
4	24445		Filler Hose		Appelez-nous	-
5	WP489464		Hex Head Screw   (Replaces: 23628)			Immediately	$ 7.05
6	WP596669		Hose Clamp   (Replaces: Y22294)			Immediately	$ 7.56
7	24439		Hose		Appelez-nous	-
8	24275		Tee,inlet Xreplace		Appelez-nous	-
9	23366		Assy,water Inlet		Appelez-nous	-
	NOTE:		Although These Mixing Valves Differ In Appearance, They Are Completely Interchangeable, As Complete Assemblies, When Identified By The Same Part Number. Use C		Appelez-nous	-
