SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

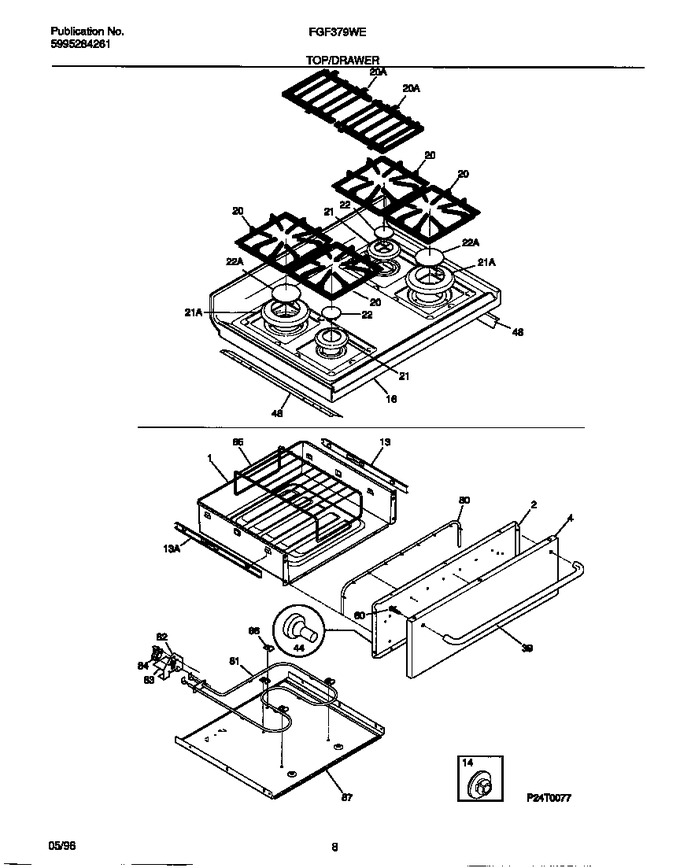

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316094601		Drawer-warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
3	316077501		Shield-bodyside, (2) (not Illustrated)		Appelez-nous	-
13	316096501		Channel-drawer, Lh		Appelez-nous	-
13	316096500		Channel-drawer, Rh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303307709		Main Top, White		Appelez-nous	-
20	316084602		Grate, Center, (2)		Appelez-nous	-
20	316094101		Grate, (4)		Appelez-nous	-
21	316011305		Trim-ring-burner, Gloss Grey, Large, (2)		Appelez-nous	-
21	316011306		Trim Ring-burner, Gloss Grey, Small, (2)		Appelez-nous	-
22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
22	316011009		Cap-burner, Gray, Large, (2)		Appelez-nous	-
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	3131903		Bumper				$ 55.36
48	316077401		Shield-maintop		Appelez-nous	-
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
80	316093000		Seal-door, Warmer Drawer		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield-terminal, Warmer		Appelez-nous	-
84	316093500		Thermo Disc, Warmer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091902		Base-warmer		Appelez-nous	-
*83004	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*83005	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*83006	316519700		Screw, Cup Pt, 8-18 X 3/8   (Replaces: 316021108)				$ 10.02
*83007	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*83008	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*83009	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
4A	316079401		Panel-drawer, Stainless		Appelez-nous	-
4B	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
