SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

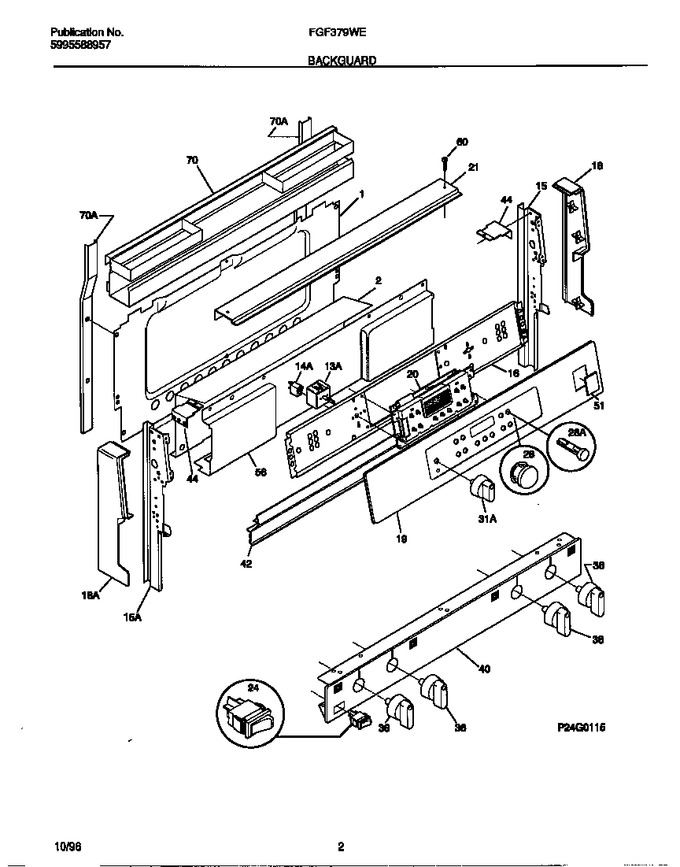

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite   (Replaces: 316095500)			Immediately	$ 84.18
14	3131963		Light-indicator, Warmer Drawer				$ 64.31
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
16	316042609		Plate, Instrument Mtg		Appelez-nous	-
18	316021804		End Cap, White, Rh		Appelez-nous	-
18	316021805		End Cap, White, Lh		Appelez-nous	-
19	316083533		Panel-control, Glass		Appelez-nous	-
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
21	316039205		Trim-canopy/shield, White		Appelez-nous	-
24	316083103		Switch-light/lamp				$ 85.31
28	316080600		Shaft-push Button, Clock/timer/eoc				$ 49.41
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
31	316095701		Knob-warmer, White				$ 29.93
36	316085002		Knob-top Valve, (4)		Appelez-nous	-
40	316086824		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082301		Nameplate, White				$ 49.14
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
70	5303500001		Support, Spice Rack		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
*34280	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*34281	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*34282	316001435		Harness-wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
