SELECT A DIAGRAM

01 - 23907 & 24304 Pump Assemblies

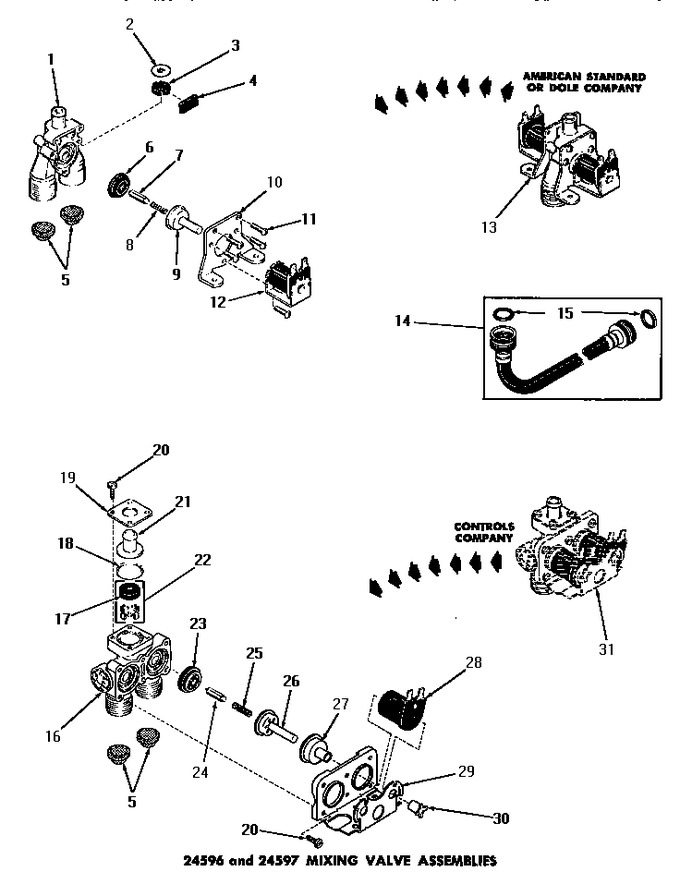

02 - 24596 & 24597 Mixing Valve Assemblies


03 - 25178 Pump Assy


04 - 25832 & 25833 Mixing Valve Assemblies


05 - Accessories


06 - Agitator Post & Spin Tub


07 - Agitator, Shaft & Fabric Softener Disp


08 - Bleach Dispenser


09 - Boot, Chassis & Drain Tub


10 - Cabinet Top & Loading Door


11 - Control Hood


12 - Control Panel & Controls


13 - Counterbalance Weight, Brkt & Mtg Plate


14 - Door Safety Switch


15 - Drain


16 - Main Bearing Assy


17 - Mixing Valves


18 - Motor & Fluid Drive


19 - Pan Supp Plt/ctrl Hood Ends & Flour Tube


20 - Panels


21 - Power Cord, Wire & Terminals


22 - Reservoir & Drain Valve


23 - Reservoir & Drain Valve


24 - Transmission Assy


25 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	20678		Body,valve		Appelez-nous	-
2	23224G		Diffuser		Appelez-nous	-
3	21187C		Regulator,flow		Appelez-nous	-
3	23224C		Regulator,flow		Appelez-nous	-
4	21561D		Plug		Appelez-nous	-
5	20181-0		Inlet Screen		Appelez-nous	-
6	23224F		Diaphragm		Appelez-nous	-
7	23224D		Armature		Appelez-nous	-
8	23224E		Spring		Appelez-nous	-
9	23224B		Guide		Appelez-nous	-
10	21561E		Mounting Bracket		Appelez-nous	-
11	21561G		Round Head Screw		Appelez-nous	-
12	21714A		Solenoid		Appelez-nous	-
13	Y00000000		See Note Mixing Valve Assembly		Appelez-nous	-
14	20241		Inlet Hose, 4 Feet		Appelez-nous	-
15	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
16	24596Q		Valve Body		Appelez-nous	-
17	Y00000000		See Note Install With Concave Surface Down Toward Valve Body		Appelez-nous	-
18	24596L		Outlet Fitting Gasket		Appelez-nous	-
19	24596N		Outlet Fitting Plate		Appelez-nous	-
20	24596P		Screw		Appelez-nous	-
21	24596M		Outlet Fitting		Appelez-nous	-
22	24596J		Regulator,flow		Appelez-nous	-
22	24597J		Flow Regulator		Appelez-nous	-
23	24596H		Diaphragm		Appelez-nous	-
24	24596G		Armature		Appelez-nous	-
25	24596F		Spring		Appelez-nous	-
26	24596E		Guide		Appelez-nous	-
27	24596D		Guide Sleeve		Appelez-nous	-
28	24596A		Solenoid		Appelez-nous	-
29	24596C		Mounting Bracket		Appelez-nous	-
30	24596B		Solenoid Sleeve		Appelez-nous	-
31	Y00000000		See Note Mixing Valve Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
