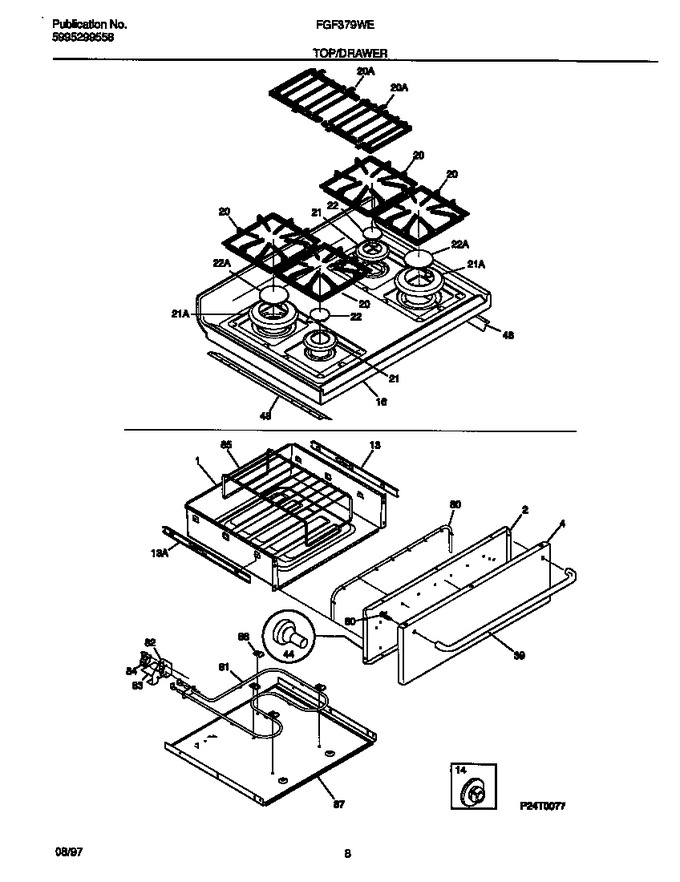

05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316094601 | Drawer-warmer |
|
- | |||||
| 2 | 316092901 | Liner, Drawer |
|
- | |||||
| 4 | 316079401 | Panel-drawer, Stainless |
|
- | |||||
| 13 | 316096500 | Channel-drawer, Rh |
|
- | |||||
| 13 | 316096501 | Channel-drawer, Lh |
|
- | |||||
| 14 | 3206216 | Plug-button, Glide |
|
- | |||||
| 16 | 5303307709 | Main Top, White |
|
- | |||||
| 20 | 316086403 | Grate, Center, (2) |
|
- | |||||
| 20 | 316084502 | Grate, (4) |
|
- | |||||
| 21 | 316011306 | Trim Ring-burner, Gloss Grey, Small |
|
- | |||||
| 21 | 316011305 | Trim Ring-burner, Gloss Grey, Large |
|
- | |||||
| 22 | 316011003 | Cap-burner, Gray, Small |
|
- | |||||
| 22 | 316011009 | Cap-burner, Gray, Large |
|
- | |||||
| 39 | 316079500 | Handle-door/drawer, Stainless |
|
$ 289.70 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 48 | 316077401 | Shield-maintop |
|
- | |||||
| 60 | 5303280311 | Screw, Waf Hd Sdr, 10-32 X 5/16, (2) |
|
$ 6.62 | |||||
| 80 | 316093000 | Seal-door, Warmer Drawer |
|
- | |||||
| 81 | 316093100 | Element, Warmer Drawer |
|
- | |||||
| 82 | 316093200 | Bracket-mounting, Warmer Element |
|
- | |||||
| 83 | 316093300 | Shield-terminal, Warmer |
|
- | |||||
| 84 | 316093500 | Thermo Disc, Warmer |
|
$ 138.39 | |||||
| 85 | 807328301 | Rack, Warmer Drawer (Replaces: 316093600) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 316091900 | Base-warmer |
|
$ 221.55 | |||||
| *79086 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *79087 | 316519700 | Screw, Cup Pt, 8-18 X 3/8, Hinge (Replaces: 316021108) |
|
$ 10.02 | |||||
| *79088 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| *79089 | 5303288574 | Screw, Truss Head, 8-10 X 0.375 |
|
- | |||||
| *79090 | 3203618 | Rivet-pop, Warning-plate |
|
- | |||||
| *79091 | 01300019EA | Cleaner, Stainless Steel (Replaces: 218490900) |
|
Immediately | $ 21.27 | ||||
| *79092 | 316045000 | Clip-wire, Harness, Main Top |
|
- |
