SELECT A DIAGRAM

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer

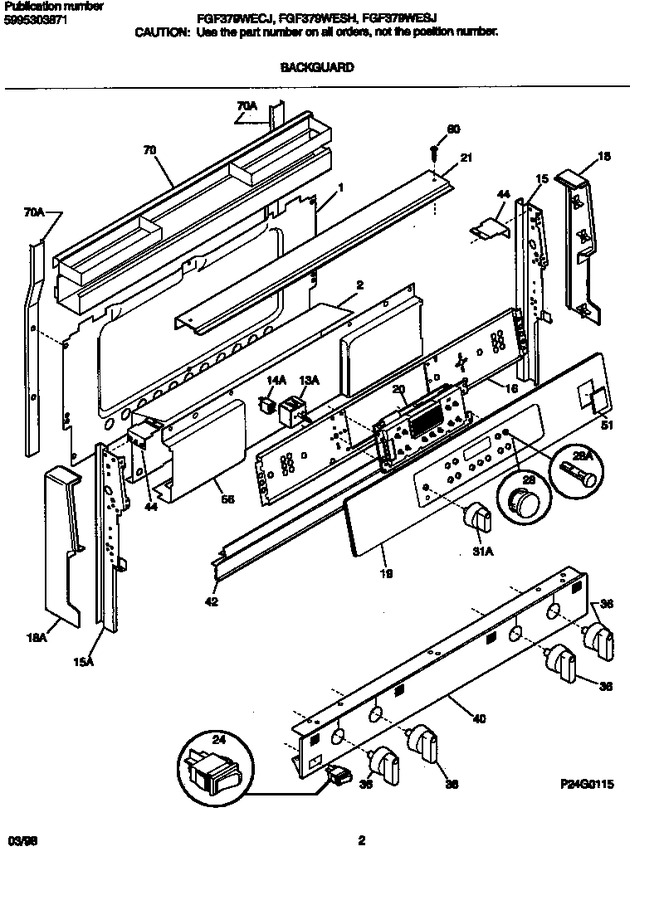

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038800		Shield-backguard, Inner		Appelez-nous	-
13	5304508926		Switch-warmer, Infinite, Drawer/zone   (Replaces: 316095500)			Immediately	$ 84.18
14	3131963		Light-indicator,warmer Dwr/zone				$ 64.31
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
16	316042613		Plate, Instrument Mtg		Appelez-nous	-
18	316021805		End Cap, White, Lh		Appelez-nous	-
18	316021804		End Cap, White, Rh		Appelez-nous	-
19	316028379		Panel-control,assy ,glass ,stainless Steel,white		Appelez-nous	-
20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
21	316039205		Trim-canopy/shield, White		Appelez-nous	-
24	316083103		Switch-rocker, Oven Light, White, Rh, (1)				$ 85.31
28	316015103		Push Button, Clock/timer/eoc, Gray				$ 11.60
28	316080600		Shaft-push Button, Clock/timer/eoc, Black				$ 49.41
31	316095701		Knob-warmer, White, (2)				$ 29.93
36	316085002		Knob-top Valve, (4)		Appelez-nous	-
40	316086824		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082301		Nameplate, White				$ 49.14
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
70	5303500001		Support, Spice Rack		Appelez-nous	-
70	316069700		Rack-spice, Stainless		Appelez-nous	-
*38960	5303272836		Clip - Backguard		Appelez-nous	-
*38961	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*38962	316001435		Harness-wiring, Backguard		Appelez-nous	-
*38963	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*38964	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
