01 - Base
02 - Cabinet
03 - Control Panel
04 - Top
05 - Transmission
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

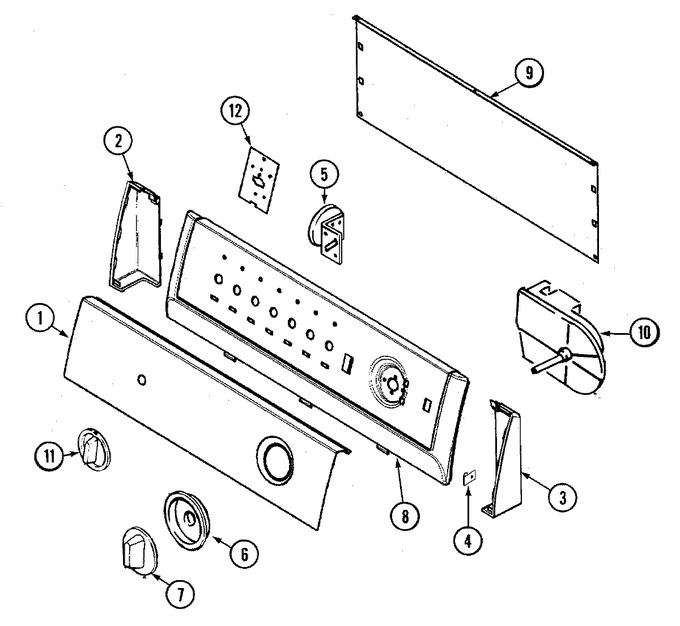

| 1 | 21001694 | Panel, Control | 10 |
|
- | ||||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 21001625 | Switch, Water Level | 10 |
|
- | ||||
| 6 | 21001520 | Skirt, Timer Knob (wht) | 10 |
|
- | ||||
| 7 | 21001526 | Knob, Timer (wht) | 10 |
|
$ 24.05 | ||||
| 8 | 21001552 | Frame (wht), Control Panel | 10 |
|
- | ||||
| 9 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 9 | 25-7853 | Retaining Ring | 10 |
|
- | ||||
| 9 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 9 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | 21001545 | Timer | 10 |
|
- | ||||
| 11 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 12 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 12 | 53-2504 | Spacer, Control Shield | 10 |
|
- | ||||
| NI | 21001697 | Manual, Use & Care | 10 |
|
- |
