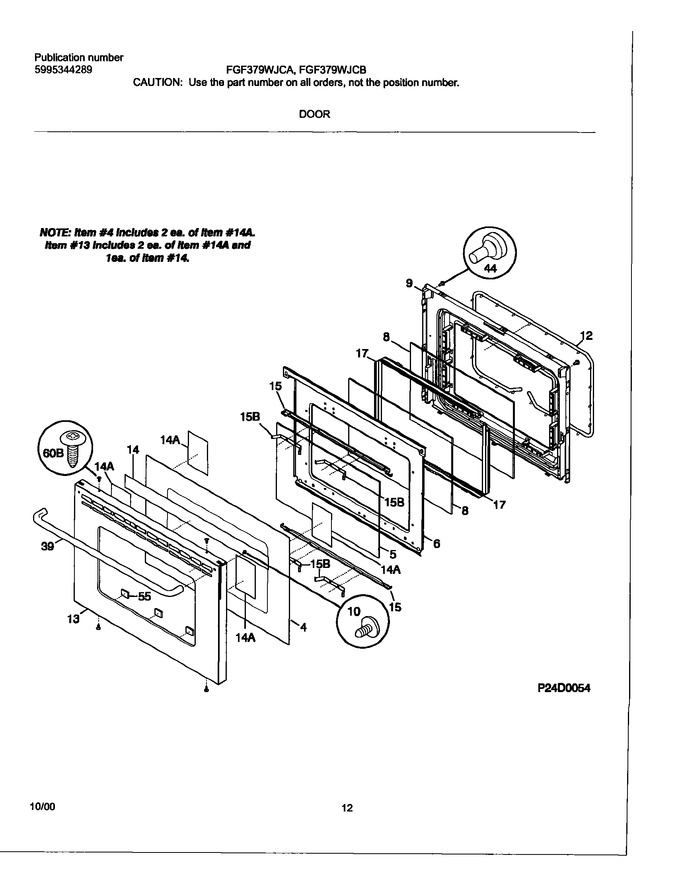

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316117900		Glass-oven Door,black ,outer		Appelez-nous	-
5	316117600		Glass-oven Door, Airwash , Inner				$ 189.05
6	316091404		Shield-wool		Appelez-nous	-
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316066619		Liner-oven Door		Appelez-nous	-
10	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
10	316001006		Screw-handle Mtg,no.10-32		Appelez-nous	-
13	316079302		Panel-oven Door,stainless ,outer		Appelez-nous	-
14	316102203		Foil,aluminum		Appelez-nous	-
15	316081405		Bracket-glass, (2)		Appelez-nous	-
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316079500		Handle-door/drawer, Stainless				$ 289.70
44	10600010001		Rubber Burner		Appelez-nous	-
55	316079900		Tape-foam 1``pc.		Appelez-nous	-
14A	316102202		Foil,4`` X 5.5`` ,aluminum ,clear ,(2)				$ 8.74
15B	316085501		Bracket,glass Support				$ 41.74
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
F12	5303131601		Seal, Door				$ 374.63
NI	5303271648		Burner Box, Wafer Hd Sq Dr , 8-18ab X 1/2			Immediately	$ 13.46
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	3203618		Pop-rivet		Appelez-nous	-
NI	3131737		Washer				$ 5.59
NI	5303285179		Screw 8-32 X 1/2`` Handle Mtg (2)				$ 13.46
NI	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
