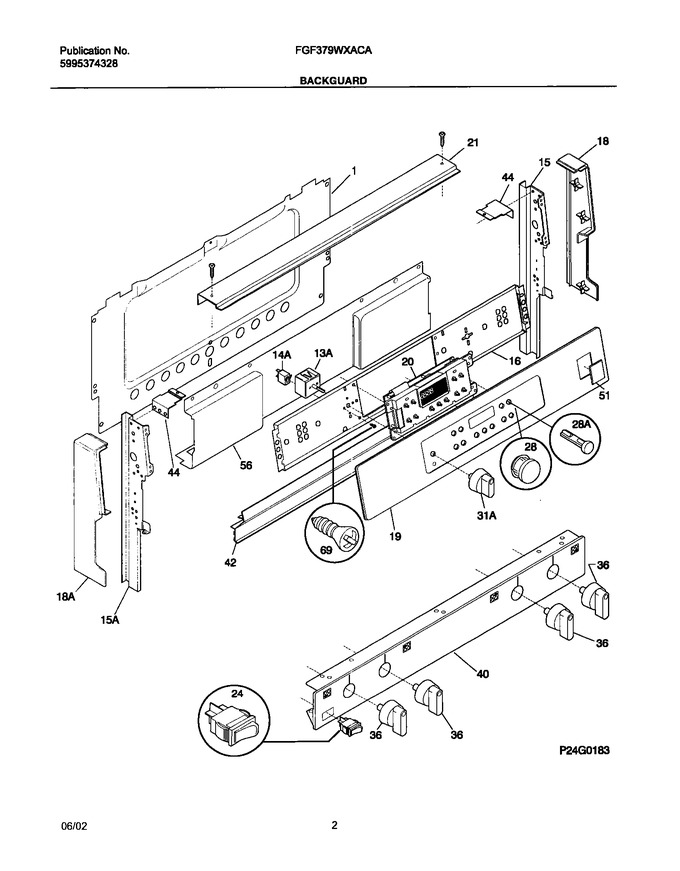

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
16	316042612		Plate,instrument		Appelez-nous	-
18	316021800		End Cap, Black, Rh				$ 81.32
19	316028381		Panel-control, Assy, Glass, Stainless, Black		Appelez-nous	-
21	316039201		Trim,canopy		Appelez-nous	-
28	316015102		Push Button, Clock/timer/eoc, Black				$ 50.35
36	316085000		Knob,top Valve ,black ,(4)				$ 77.18
40	316086824		Panel,manifold ,stainless		Appelez-nous	-
42	5303272839		Trim,vent ,black		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
14A	3131963		Light,indicator ,warmer Drw/zone				$ 64.31
15A	316023109		Support,backguard ,lh		Appelez-nous	-
18A	316021801		End Cap, Black, Lh				$ 94.29
28A	316080600		Shaft,push Button ,black ,clock/timer/eoc				$ 49.41
31A	316095700		Knob-warmer, Black, (2)		Appelez-nous	-
F13A	5304508926		Switch,infinite ,drawer/zone ,warmer   (Replaces: 316095500)			Immediately	$ 84.18
F20	316080102CP		Clock/timer, Eoc   (Replaces: 316080102)		Appelez-nous	-
F24	316083101		Switch,rocker ,black ,oven Light				$ 85.01
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303272836		Clip - Backguard		Appelez-nous	-
NI	316001435		Wiring Harness,backguard		Appelez-nous	-
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
