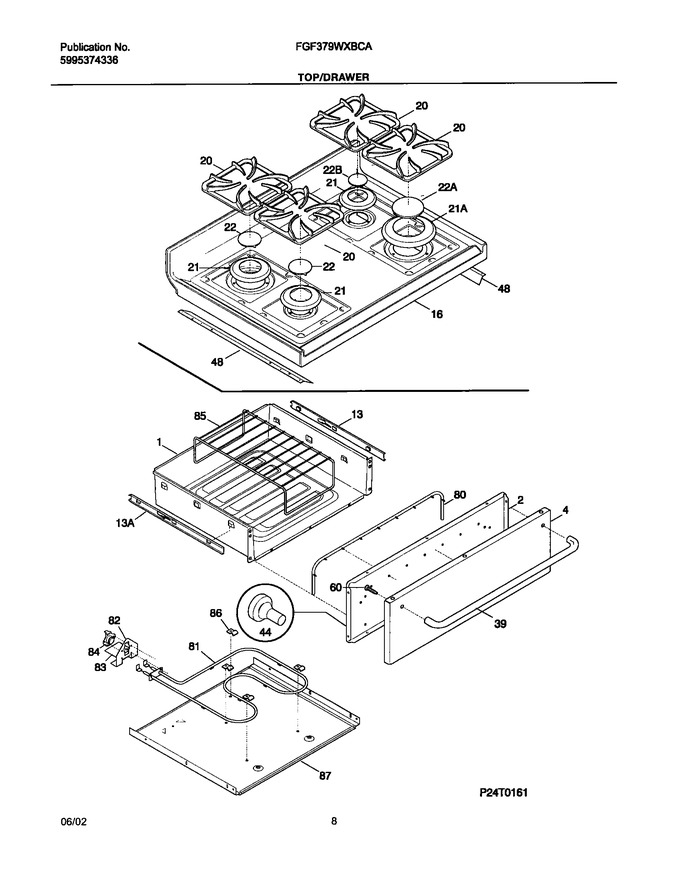

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316115901		Drawer,warmer		Appelez-nous	-
2	316092902		Liner Panel,4		Appelez-nous	-
4	316079401		Panel-drawer, Stainless		Appelez-nous	-
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
16	316114803		Maintop,black		Appelez-nous	-
21	316011300		Trim Ring-burner, Black, Small				$ 68.59
22	316122100		Cap-burner,small ,black ,(4)		Appelez-nous	-
39	5304529996		Handle,oven Door ,black   (Replaces: 316248300)				$ 156.11
44	3131903		Bumper				$ 55.36
48	316077401		Shield,deflector ,main Top Panel ,(2)		Appelez-nous	-
60	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
80	316109700		Seal-door,warmer Drawer				$ 106.16
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093500		Thermo Disc,warmer Drawer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
13A	318259507		Glide,warmer ,inner Lh   (Replaces: 316105601)			Immediately	$ 69.01
21A	316011304		Trim-ring-burner, Black, Large				$ 97.23
22A	316098505		Cap-burner,black ,large				$ 56.28
81No.	316093100		Element, Warmer Drawer		Appelez-nous	-
F20	316085201		Grate,black ,(4)		Appelez-nous	-
F22B	316118800		Cap-simmer Burner,gloss Black				$ 12.18
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316248400		Spacer,handle ,black ,(2)		Appelez-nous	-
NI	316001917		Harness-warmer Drawer				$ 66.31
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
