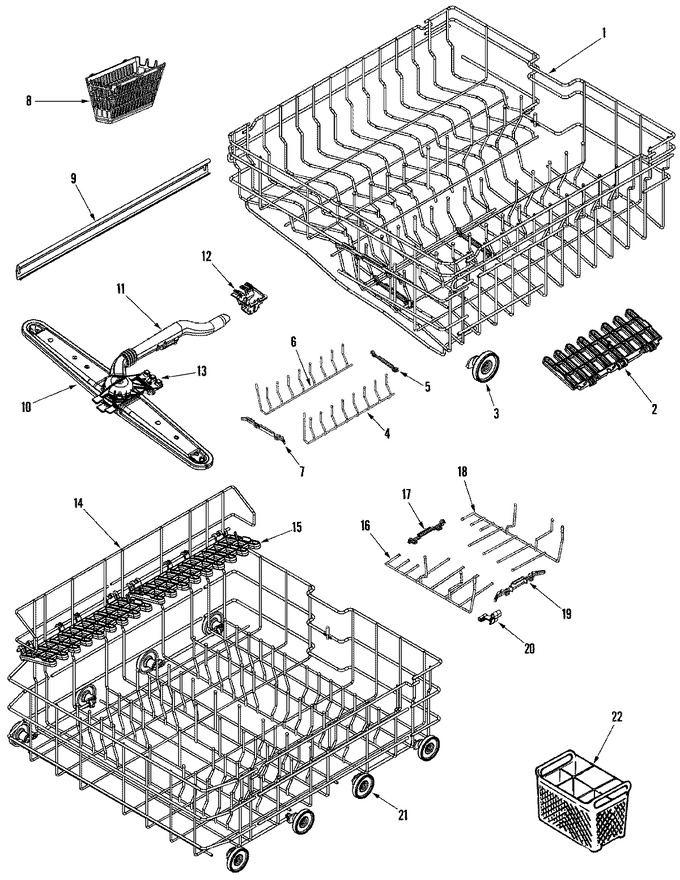

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003286 | Rack Assembly (upr) | A |
|
- | ||||
| 1 | 99002905 | Cap, Rack (dark Gray) | A |
|
$ 23.63 | ||||
| 2 | 99003006 | Shelf, Rack (upr) | A |
|
- | ||||
| 3 | WP99002947 | Tub Wheel Assembly (gray) (Replaces: 99002947) | A |
|
Immediately | $ 10.58 | |||
| 4 | 99002707 | Tine, Fold Away (rt) | A |
|
- | ||||
| 5 | 99003288 | Pivot, Fold Away Tine | A |
|
- | ||||
| 6 | 99002708 | Tine, Fold Away (lt) | A |
|
- | ||||
| 7 | 99003289 | Latch, Fold Away Tine | A |
|
- | ||||
| 8 | 99003001 | Basket, Auxillary | A |
|
- | ||||
| 9 | WPW10261227 | Stop, Rack (gray) (Replaces: 99002623) | A |
|
Immediately | $ 6.93 | |||
| 9 | 99002621 | Track, Rack | A |
|
$ 56.82 | ||||
| 10 | 99002624 | Arm, Wash (upr) | A |
|
$ 32.72 | ||||
| 10 | 99002740 | Screw, Truss Head (10-18x.75) | A |
|
$ 6.24 | ||||
| 11 | 99002679 | Wash Manifold Assy (upr) | A |
|
- | ||||
| 12 | 99002945 | Clip, Upr Wash Manifold (back) | A |
|
$ 21.24 | ||||
| 13 | 99002669 | Clip, Upr Wash Manifold (frt) | A |
|
$ 5.84 | ||||
| 14 | 99002905 | Cap, Rack (dark Gray) | A |
|
$ 23.63 | ||||
| 14 | 99003287 | Rack Assembly (lwr) | A |
|
- | ||||
| 15 | 99003002 | Shelf, Rack (lwr) | A |
|
- | ||||
| 16 | 99002717 | Tines, Convertible (frt) | A |
|
- | ||||
| 17 | WP99003003 | Pivot, Convertible Tine(gray) (Replaces: 99003003) | A |
|
Immediately | $ 7.22 | |||
| 18 | 99002718 | Tines, Convertible (rear) | A |
|
- | ||||
| 19 | 99003004 | Latch, Convertible Tine | A |
|
$ 6.62 | ||||
| 20 | 99003005 | Latch, Secondary Conv. Tine | A |
|
- | ||||
| 21 | WP99002780 | Wheel Assembly (lwr) (Replaces: 99002780) | A |
|
Immediately | $ 9.90 | |||
| 22 | WP6-918873 | Basket, Silverware (gray) (Replaces: 99002995) | A |
|
Immediately | $ 54.28 |
