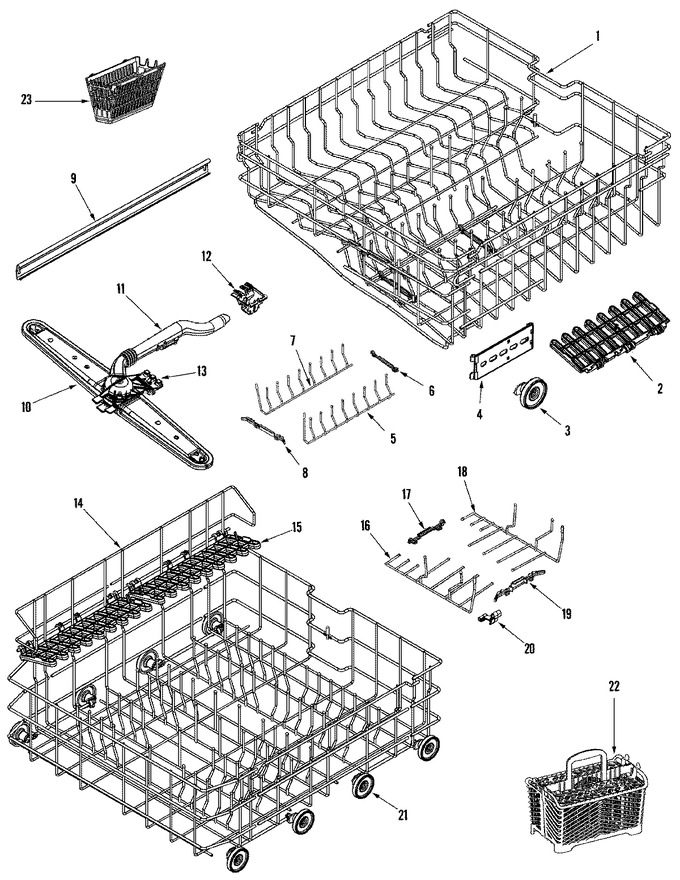

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003293 | Rack Assembly (upr) | A |
|
- | ||||
| 1 | 99002905 | Cap, Rack (dark Gray) | A |
|
$ 23.63 | ||||
| 2 | 99003006 | Shelf, Rack (upr) | A |
|
- | ||||
| 3 | 99003147 | Wheel Assembly (upr) | A |
|
$ 9.42 | ||||
| 4 | 99003053 | Guard, Rack (low Side) | A |
|
$ 9.96 | ||||
| 4 | 99003052 | Guard, Rack (high Side) | A |
|
$ 5.01 | ||||
| 5 | 99002707 | Tine, Fold Away (rt) | A |
|
- | ||||
| 6 | 99003288 | Pivot, Fold Away Tine | A |
|
- | ||||
| 7 | 99002708 | Tine, Fold Away (lt) | A |
|
- | ||||
| 8 | 99003289 | Latch, Fold Away Tine | A |
|
- | ||||
| 9 | 99003068 | Bearing, Ball | A |
|
$ 5.83 | ||||
| 9 | 99003043 | Stop, Rail (gray) | A |
|
- | ||||
| 9 | 99003069 | Cage, Ball Bearing | A |
|
$ 6.26 | ||||
| 9 | 99003066 | Rail, Inner Slide | A |
|
- | ||||
| 10 | 99002624 | Arm, Wash (upr) | A |
|
$ 32.72 | ||||
| 11 | 99002679 | Wash Manifold Assy (upr) | A |
|
- | ||||
| 12 | 99002945 | Clip, Upr Wash Manifold (back) | A |
|
$ 21.24 | ||||
| 13 | 99002669 | Clip, Upr Wash Manifold (frt) | A |
|
$ 5.84 | ||||
| 14 | 99002905 | Cap, Rack (dark Gray) | A |
|
$ 23.63 | ||||
| 14 | 99002998 | Rack Assembly (lwr) | A |
|
- | ||||
| 15 | 99003002 | Shelf, Rack (lwr) | A |
|
- | ||||
| 16 | 99002717 | Tines, Convertible (frt) | A |
|
- | ||||
| 17 | WP99003003 | Pivot, Convertible Tine(gray) (Replaces: 99003003) | A |
|
Immediately | $ 7.22 | |||
| 18 | 99002718 | Tines, Convertible (rear) | A |
|
- | ||||
| 19 | 99003004 | Latch, Convertible Tine | A |
|
$ 6.62 | ||||
| 20 | 99003005 | Latch, Secondary Conv. Tine | A |
|
- | ||||
| 21 | WP99002780 | Wheel Assembly (lwr) (Replaces: 99002780) | A |
|
Immediately | $ 9.90 | |||
| 22 | 99002999 | Basket, Silverware (w/cover) | A |
|
- | ||||
| 22 | 99003000 | Cover, Silverware Basket | A |
|
- | ||||
| 22 | WP6-918873 | Basket, Silverware (half) (Replaces: 99002684) | A |
|
Immediately | $ 54.28 | |||
| 23 | 99003001 | Basket, Auxillary | A |
|
- |
