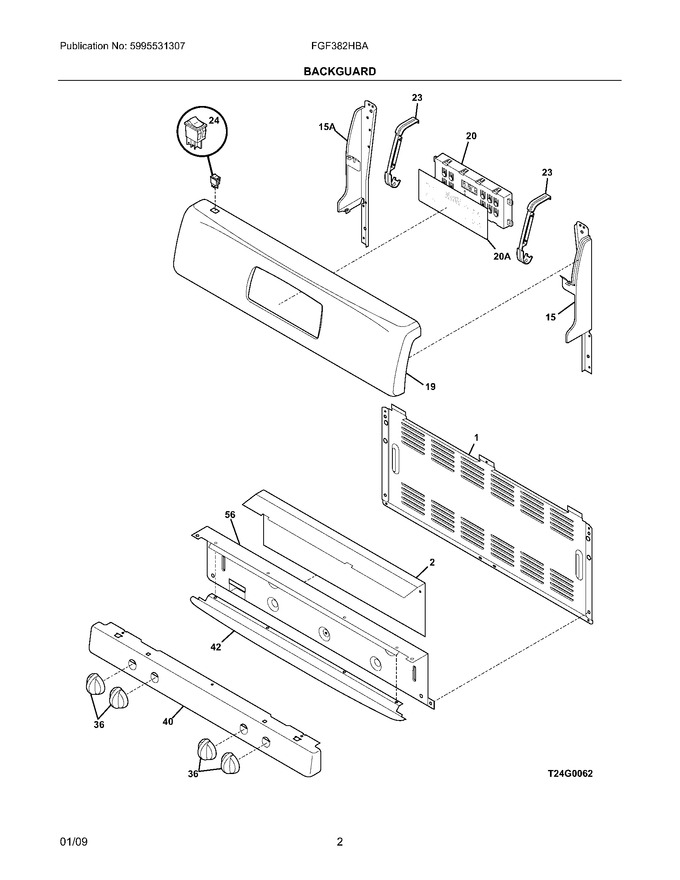

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316445221		Panel-backguard,black		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 20.48
36	316220002		Knob,top Valve ,black			Immediately	$ 56.70
40	316447303		Panel,manifold ,black		Appelez-nous	-
42	316416204		Trim,extrusion ,black   (Replaces: 316416200)				$ 43.99
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419141		Overlay,clock ,black ,es300   (Replaces: 316419103)			Immediately	$ 56.87
F20	5304509983		Clock/timer,electronic ,es300   (Replaces: 316418201)			Immediately	$ 186.73
F24	5304527841		Switch,rocker ,black ,oven Light   (Replaces: 316448700)			Immediately	$ 11.38
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
