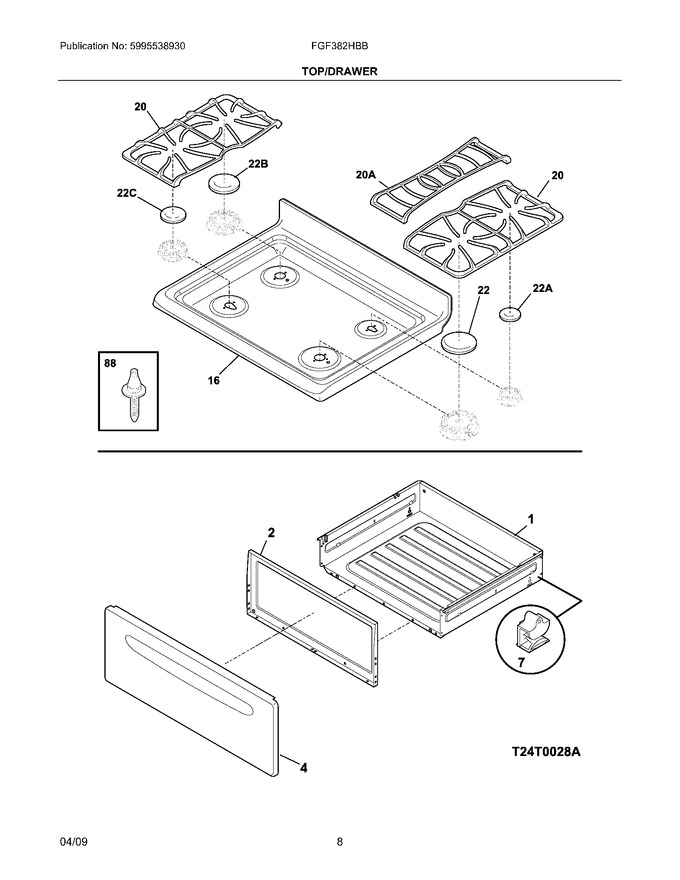

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner,drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	316403402		Panel,drawer ,black ,front				$ 43.33
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316469601		Maintop Panel,black		Appelez-nous	-
20	316424601		Grate,black ,(2)				$ 279.14
22	316438500		Cap-burner,17k ,black				$ 54.50
88	316099500		Pin,guide ,(2)				$ 6.53
20A	316424701		Grate,center ,black		Appelez-nous	-
22A	316261700		Cap,5k Burner ,black   (Replaces: 316438300)				$ 43.99
22B	316438100		Cap,12k-burner ,black		Appelez-nous	-
22C	316527700		Cap,9.5k Burner ,black				$ 48.99
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
